Remove/install side paneling in trunk - AR68.30-P-4800G

MODEL 170

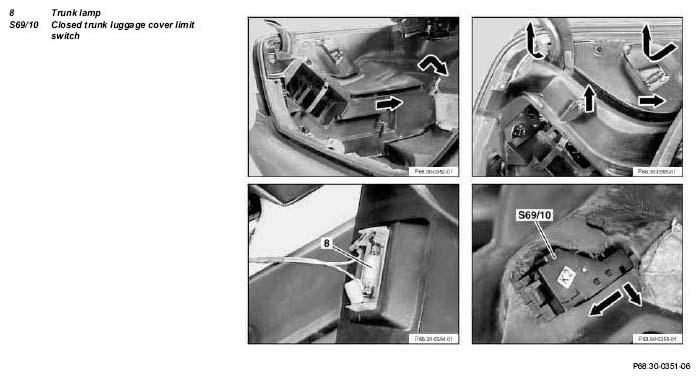

Fig 1: Identifying Side Paneling In Trunk Remove/Install Components - Model 170 (1 Of 2)

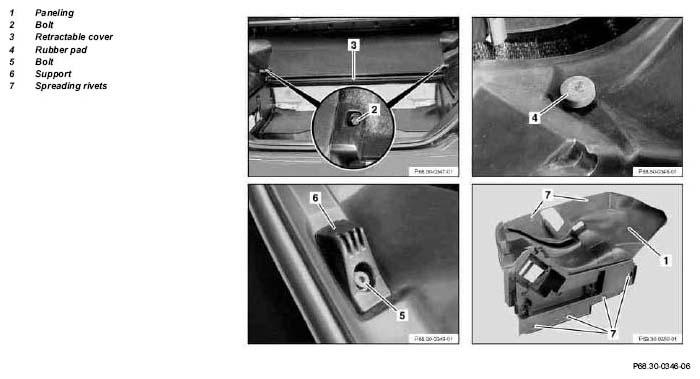

Fig 2: Identifying Side Paneling In Trunk Remove/Install Components - Model 170 (2 Of 2)

	Remove/install
1	Activate roof opening	When the roof opening is activated, the hinges move out of their end positions. Function prerequisites Hand brake applied. Luggage roller pulled out and hooked in. Trunk lid closed. Ignition switched on (2nd stage).
2	Open trunk lid
3	Remove paneling of rear center section		AR68.30-P-4785G
4	Unscrew bolt (2) and remove retractable cover (3).
5	Pull off rubber buffer (4)
6	Unscrew bolt (5) and remove support (6).
7	Remove spreading rivets (7)	6 in total
8	Remove paneling (1) in direction of arrow	Lift paneling over mount for rubber buffer (4)
9	Remove trunk lamp (8)	In left paneling.
10	Remove closed trunk luggage cover limit switch (S69/10) in arrow direction	Do not disconnect connector.
11	Install in the reverse order	Installation:  Ensure that trunk seal is seated properly.
