Removing and installing front center console - AR68.20-P-2010G

MODEL 170

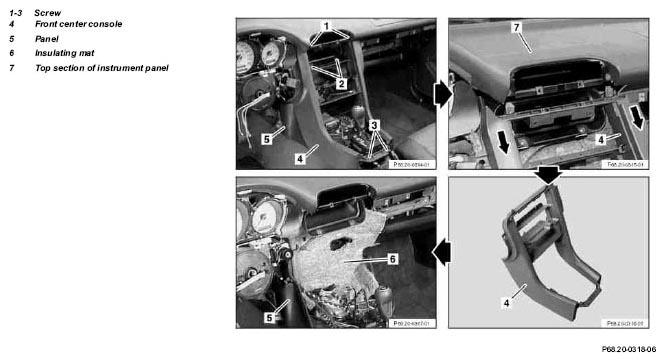

Fig 1: Identifying Front Center Console Remove/Install Components

	Removal, installation
1	Remove cover below instrument panel (driver's side)		AR68.10-P-1500G
2	Remove cover in instrument cluster		AR68.10-P-1550G
3	Remove rear center console		AR68.20-P-2020G
4	Remove cover on center console		AR68.20-P-2350G
5	Remove ashtray with stowage compartment on front center console		AR68.20-P-2410G
6	Remove glove compartment		AR68.10-P-1400G
7	Remove stowage compartment or beverage holder		AR68.10-P-1600G
8	Remove push-button control module for heater		AR83.25-P-1120G
9	Unscrew screw (1-3, 6 each)
10	Remove center console (4) downward from top section of instrument panel (7)
11	Remove center console (4)	When installing insert insulating mat (6), expose electric wires and insert panel (5) into side insert tabs on center console
12	Reinstall in opposite order
