Removing and installing pushbutton control module for automatic heater or air conditioning (tempmatic) - AR83.25-P-1120G

MODEL 170

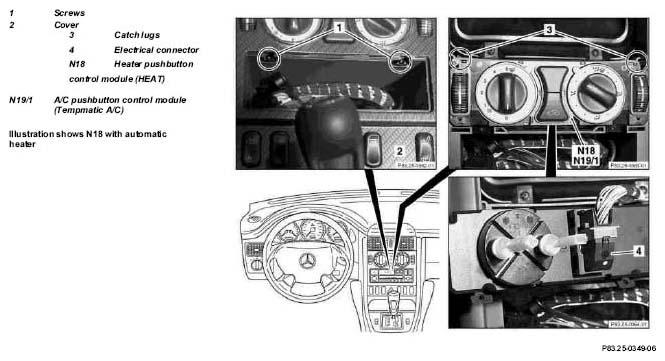

Fig 1: Identifying Pushbutton Control Module For Automatic Heater Or Air Conditioning Remove/Install Components

	Removal, installation
1	Remove radio		AR82.60-P-7502EA
2	Unscrew screws (1)
3	Remove cover (2)
4	Pull out pushbutton control module (N18 or N19/1)	To remove press in catch lugs at side (3)
5	Disconnect electrical connector (4)	To disconnect the connector swing retaining bow down
6	Remove pushbutton control module (N18 or N19/1)	Installation:  When installing ensure that the air distribution linkage is in the correct position. This can be checked by reaching into the radio opening.
7	Reinstall in opposite order
