Remove/install glove compartment - AR68.10-P-1400G

MODEL 170

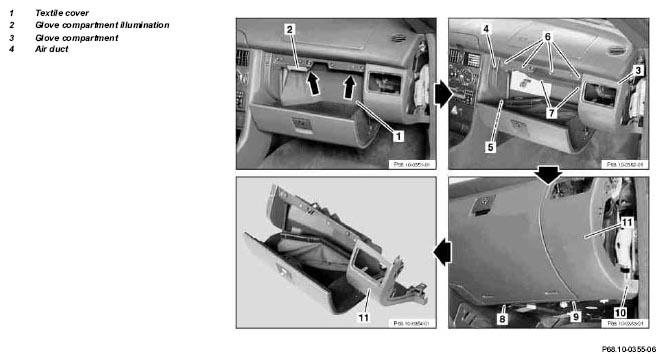

Fig 1: Identifying Glove Compartment Remove/Install Components

	Remove/install
1	Remove side air nozzle (passenger side)		AR68.10-P-1100G
2	Remove cover below instrument panel (passenger side)		AR68.10-P-1520G
3	Open glove compartment cover
4	Unclip textile cover (1) at top (arrow)
5	Unclip glove compartment lamp (2) and disconnect electrical lead connection
6	Unscrew screws (3-10, 12 each)
7	Remove glove compartment (11)	When installing install air duct, check clips and expose electrical leads for glove compartment illumination and route through
8	Install in the reverse order
