Removing and installing rear center console - AR68.20-P-2020G
MODEL 170
| Removal, installation | |||

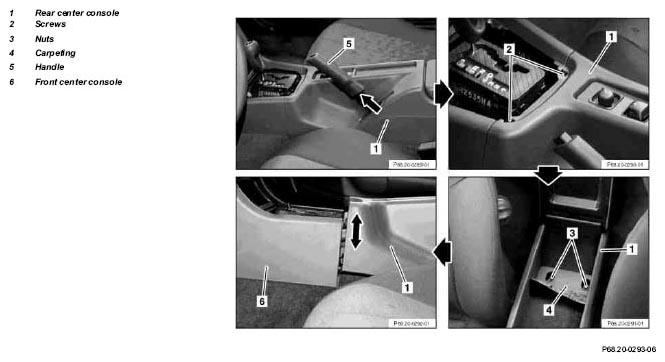

| 1 | Remove cover on shift lever | AR68.20-P-2310G | |
| 2 | Pull handle (5) off of parking brake lever | ||
| 3 | Unscrew screws (2) | ||
| 4 | Open cover on stowage compartment | ||
| 5 | Lift carpeting (4) at rear | ||
| 6 | Unscrew nuts (3) and remove | ||
| 7 | Lift center console (2) uniformly while moving out at front with arresting hook at separating point | ||
| 8 | Guide parking handle through opening in retractable cover | ||
