Retrofitting trunk lid emergency release - AZ88.50-P-0002G: Notes

MODEL 170 with CODE (491) U.S. version Mechanical emergency release

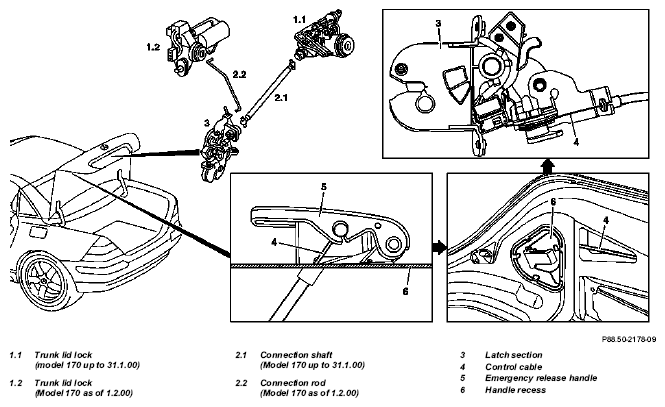

Fig 1: Identifying Trunk Lid Emergency Release Retrofit Components

	The parts for retrofitting the trunk lid emergency release are given in the part documents (Group KG 75 trunk lid).
	Removing
1	Remove latch section (3)	The latch section (3) is replaced. Do not remove trunk lid lock (1.1) or (1.2)!
		Model 170 up to 31.1.00	AR88.50-P-5020G
		Model 170 as of 1.2.00	AR88.50-P-5020GA
2.1	Remove connection linkage (2.2)	Model 170 as of 1.2.00. The connection linkage (2.2) is replaced.
	Installation
3	Retrofit control cable (4)		AZ88.50-P-0002-04G
4	Position latch section (3) at its installation position on the trunk lid
5.1	First insert connection shaft (2.1) into guide on latch section (3) and then into guide on trunk lid lock (1.1)	Model 170 up to 31.1.00
5.2	Hook new connection linkage (2.2) into latch section (3)	Model 170 as of 1.2.00
6	Install latch section (3) and adjust
		Model 170 up to 31.1.00	AR88.50-P-5020G
		Model 170 as of 1.2.00	AR88.50-P-5020GA
7	Carry out operational check
8	Place insert sheet for trunk lid emergency release in Owner's Manual	Order number see parts ordering notes.
