Removing, installing and adjusting trunk lid lock and striker eye - AR88.50-P-5020G
MODEL 170 up to 31.1.00

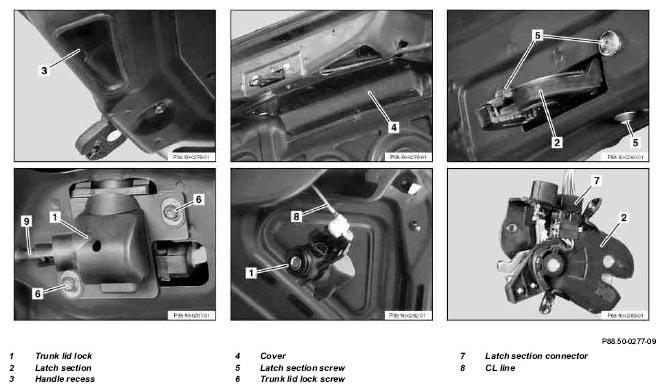

Fig 1: Identifying Trunk Lid Lock And Striker Eye Remove/Install Components - Model 170 Up To 31.1.00 (1 Of 2)

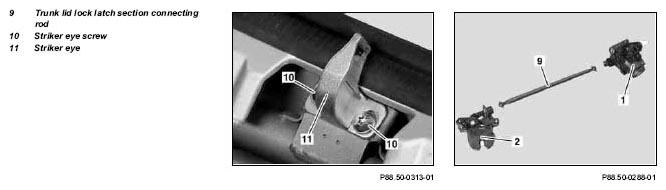

Fig 2: Identifying Trunk Lid Lock And Striker Eye Remove/Install Components - Model 170 Up To 31.1.00 (2 Of 2)
| Removing, installing | |||
| 1 | Remove handle recess (3) and cover (4) | ||
| 2 | Unscrew screws (5) and remove latch section (2) from trunk lid | *BA88.50-P-1006-01A | |
| 3 | Unscrew screws (6) on trunk lid lock (1) and remove connecting rod (9) | *BA88.50-P-1005-01A | |
| 4 | Press off CL line (8) and remove trunk lid lock (1) | ||
| 5 | Disconnect connector (7) and remove latch section (2) | ||
| 6 | Mark position of striker eye (11), unscrew screws (10) and remove striker eye (11) | *BA88.50-P-1007-01A | |
| N | Install in the reverse order | ||
| Adjust trunk lid | AR88.50-P-5200G |
| Number | Designation | Model 170 | |
|---|---|---|---|
| BA88.50-P-1005-01A | Screw for trunk lid lock on trunk lid | Nm | 8 |
| BA88.50-P-1006-01A | Screw for latch section on trunk lid | Nm | 8 |
| BA88.50-P-1007-01A | Screw for striker eye on tubular frame | Nm | 10 |
