Removing, installing and adjusting trunk lid lock and striker eye - AR88.50-P-5020GA
MODEL 170 as of 1.2.00

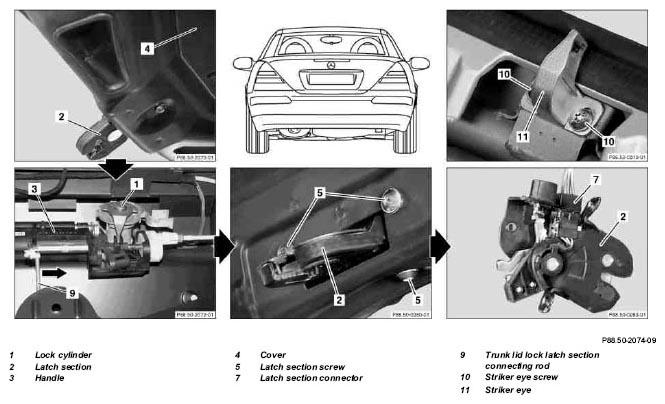

Fig 1: Identifying Trunk Lid Lock And Striker Eye Remove/Install Components - Model 170 As Of 1.2.00
| Removing, installing | |||
| 1 | Remove cover (4) | ||
| 2 | Unclip connecting rod (9) from handle (3) and unhook latch section (2) | ||
| 3 | Unscrew screws (5) and remove latch section (2) from trunk lid | *BA88.50-P-1006-01A | |
| 4 | Disconnect connector (7) and remove latch section (2) | ||
| 5 | Mark position of striker eye (11), unscrew screws (10) and remove striker eye (11) | *BA88.50-P-1007-01A | |
| 6 | Install in the reverse order | ||
| Adjust trunk lid | AR88.50-P-5200G |
| Number | Designation | Model 170 | |
|---|---|---|---|
| BA88.50-P-1006-01A | Screw for latch section on trunk lid | Nm | 8 |
| BA88.50-P-1007-01A | Screw for striker eye on tubular frame | Nm | 10 |
