Removing and installing seat cushion heater elements in front seats - AR91.30-P-0004A

MODEL 210

Left-hand steering

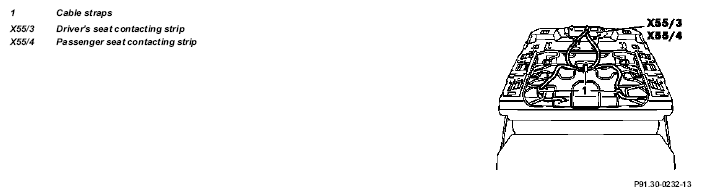

Fig 1: Identifying Seat Cushion Heater Elements In Front Seats Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal
1	Remove left and right front seats		AR91.10-P-1000F
2	Remove seat adjustment device on left and right front seats		AR91.10-P-1450F
3	Remove left and right front seat backrests		AR91.10-P-1060E
4	Remove cover on left and right front seat cushions		AR91.18-P-1800F
5	Remove cover on left and right front seat backrests		AR91.18-P-1820F
	Installation
6	Install heater elements in seat cushions		AR91.30-P-0004-01A
7	Install new cover on left and right front seat cushions		AR91.18-P-1800F
8	Install heater elements in seat backrest		AR91.30-P-0004-02A
9	Install new cover on left and right front seat backrests		AR91.18-P-1820F
10	Install left and right front seat backrests		AR91.10-P-1060E
11	Install leads, see initial figure
12	Fasten leads with cable straps (1)
13	Press connector into driver's seat connecting strip (X55/3)/passenger seat connecting strip (X55/4)
14	Install seat adjustment device on left and right front seats		AR91.10-P-1450F
15	Install left and right front seats		AR91.10-P-1000F
