Removing and installing front seat backrest - AR91.10-P-1060E

MODEL 202, 210

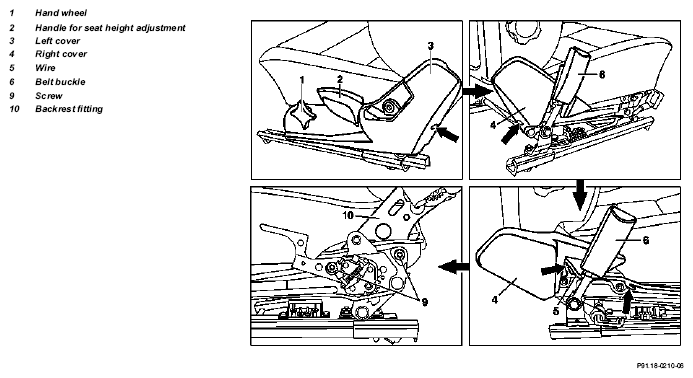

Fig 1: Identifying Front Seat Backrest Components - Model 202, 210

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Remove front seat		AR91.10-P-1000E
2	Pull off hand wheel (1)
3	Pull off handle (2) toward front
4	Unscrew screw (arrow) on cover (3)
5	Press cover (3) toward front out of catch lug and remove
6	Unscrew screw (arrow) on cover (4)
7	Press cover (4) toward front out of catch lug
8	Unclip wire (5) on cover (4) and remove cover (4)
9	Unscrew screw (9) on backrest fitting (10) on left and right	Use internal torx attachment T40	*BA91.10-P-1003-01A
10	Remove front seat backrest from seat adjustment mechanism
11	Reinstall in opposite order

Front seats

Number	Designation		Model 202	Model 210
BA91.10-P-1003-01A	Screw on backrest fitting	Nm	35	35
