Installing cover and seat cushion heater element in seat cushion - AR91.30-P-0004-01A

  1. Increase size of cutout (1) in rubberized fiber matting (to prevent pressure points on cover).

    IMPORTANT Not on Classic version.

    Only when retrofitting.

  2. Connect connector (4) and position in intended cutout (1) in rubberized fiber matting.

    IMPORTANT Connector (4) not present on Classic version.

  3. Push connector (2) through cutout (3) in rubberized fiber matting.
  4. Install new cover on rubberized fiber matting, align and hook in.

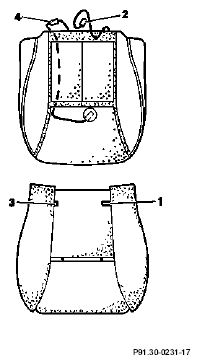

    Fig 1: Identifying Cover And Seat Cushion Heater Element In Seat Cushion
    G04632967Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
