Remove/Install |
|
|
| 1 |
Remove front seat |
|
AR91.10-P-1000F |
| 2 |

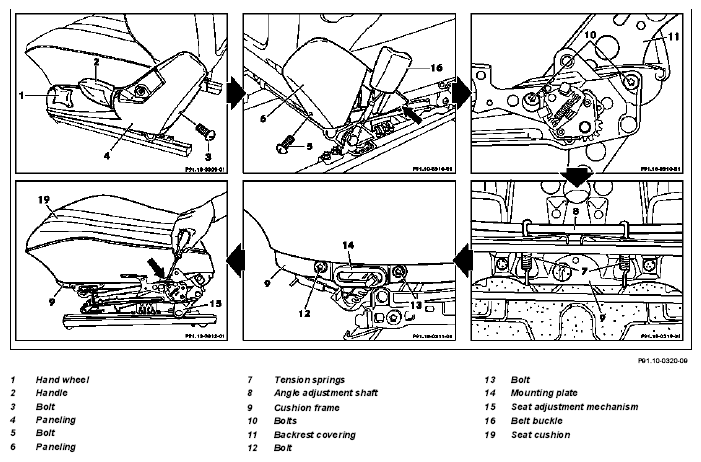

Remove hand wheel (1), pull handle (2) towards front |
|
|
| 3 |
Unscrew screw (3) at trim (4) and remove trim (4) from seat adjuster |
Installation: Hang trim (4) onto front seat adjuster |
|
| 4 |
Unscrew screw (5) from trim (6) and remove trim (6) |
Installation: Hang trim (6) onto front seat adjuster (arrow) and latch onto backrest fitting |
|
| 5 |
Unscrew the bolts (10) on the left and right of the backrest fitting (11) |
|
|
 |
|
Use torx socket insert T45 |
*BA91.10-P-1003-01A |
| 6 |
Remove front seat backrest from the seat adjuster |
|
|
| 7 |
Detach tension springs (7) for angle adjustment shaft (8) at cushion frame (9) |
|
|
| 8 |
Unscrew screws (12 and 13) from mounting plate (14) |
|
|
|
|
Use torx socket insert T30 |
*BA91.10-P-1002-01A |
| 9 |

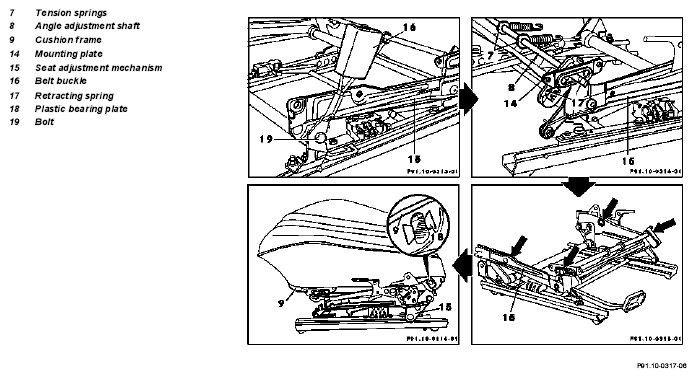

Remove seat adjuster (15) from seat cushion (19) |
Installation: Check left and right plastic bearing plates (18) on cushion frame (9) and insert if necessary. Grease bearing bushes, quadrants and mounting plates (14) of seat adjuster (15) |
|
| 10 |
Unscrew seat belt buckle (16) from seat adjuster (15) (SW 17) |
|
|
|
|
|
*BA91.40-P-1003-01A |
| 11 |
Unhook retracting spring (17) from right and left quadrant (relieve tension) |
|
|
| 12 |
Take angle adjustment shaft (8), both tensile springs (7) and bearing plates (14) off the seat adjuster (15) |
Installation: Fit flattened side of angle adjustment shaft (8) to outer side of seat (handwheel holder) |
|
| 13 |
Install in the reverse order |
|
|
