Retrofitting folding seat with seat belts - AN91.22-P-1000FA

MODEL 210.2

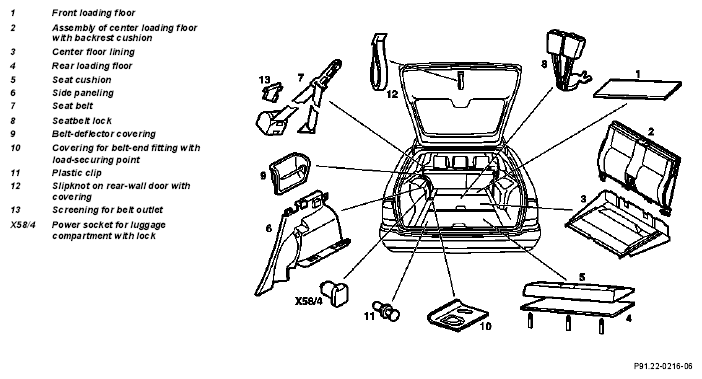

Fig 1: Identifying Retrofitting Folding Seat With Seat Belts Components
G04633015Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVING Removing
1 Remove spare wheel cover and spare wheel
2 Remove lining in right of storage compartment
3 Remove floor covering in rear passenger compartment   AR68.20-P-4800B
4 Remove rear head restraints
5 Remove covering at rear entrance
6 Remove paneling on C-pillar   AR68.30-P-4490FA
7 Remove side paneling in rear IMPORTANT is replaced. AR68.30-P-4780B
8 Remove bass loudspeakers IMPORTANT only in special equipment Code 810. AR82.62-P-7839EC
9 Remove insulation at rear side section
10 Remove paneling on rear roof frame   AR68.30-P-4470A
11 Remove liner on tailgate   AR68.30-P-1050B
INSTALLING Installing
12.1 Stamp opening in trim of rear roof frame Model 210.2 except code 290 windowbag. AN68.30-P-4470-01FA
12.2 Make opening in trim of rear roof frame Model 210.2 with code 290 windowbag. AN68.30-P-4470-02FA
REFER TO SHOP-MADE TOOLS Saw template for seat-belt guide bracket opening in roof frame's trim Model 210.2. WF58.50-P-6830-01FA
    Drill (electric/pneumatic) *WE58.40-Z-1001-03A
    Body saw (electric/pneumatic). *WE58.40-Z-1004-03A
13 Mount seat-belt guide bracket Model 210.2 with code 290 windowbag.
    IMPORTANT Refer to ↓
    Retrofit seatbelts for folding bench. AN91.40-P-0690-01FA
    TORQUE SPECIFICATION Screw on rear seat-belt guide bracket. *BA91.40-P-1005-01A
14 Install paneling on rear roof frame   AR68.30-P-4470A
15 Insert covering on belt feed through into roof frame lining Model 210.2 with code 290 windowbag.
16 Retrofit seatbelts for folding bench   AN91.40-P-0690-01FA
    TORQUE SPECIFICATION Screw on seat-belt end fitting. *BA91.40-P-1001-01A
    TORQUE SPECIFICATION Screw on rear seat-belt guide bracket. *BA91.40-P-1005-01A
    TORQUE SPECIFICATION Screw at rear belt retractor. *BA91.40-P-1006-01A
    TORQUE SPECIFICATION Screw on rear buckle. *BA91.40-P-1007-01A
17 Install loading floor at front
18 Retrofit center floor covering with backrest padding   AN68.20-P-4800-01FA
19 Retrofit rear floor covering with seat cushion   AN68.20-P-4800-02FA
20 Install storage compartment power socket (lockable) in the left-hand side panel
21 Retrofit closing loop on tailgate   AN68.30-P-1050-01FA
22 Install in the reverse order IMPORTANT Positions 11, 9-4, 2, 1.
TORQUE SPECIFICATION Seatbelts/emergency tensioning retractors

Number Designation Model 210
BA91.40-P-1001-01A Screw on seat-belt end fitting. Nm 35
BA91.40-P-1005-01A Screw in rear upper belt guide fitting Nm 30
BA91.40-P-1006-01A Screw at rear belt retractor Nm 30
BA91.40-P-1007-01A Screw on rear buckle Nm 30
Commercially available tools

Number Designation
WH58.30-Z-1035-02A Wad punch, dia. 25 mm
Workshop equipment

WE58.40-Z-1001-03A Drill (electric/pneumatic)
WE58.40-Z-1004-03A Body saw (electric/pneumatic)
WE58.40-Z-1006-14A Blind rivet nut hand tool
Parts ordering notes

Part no. Designation Quantity
99 Delivery specification folding-bench
69 Trims and floor lining (order according to special equipment specification and equipment colors)
93 Seat cushions and backrests (order according to special equipment specification and equipment colors)
74 Slipknots and covering (order according to special equipment specification and equipment colors)
