Removing, installing bass speaker - AR82.62-P-7839EC
MODEL 210.2 with CODE (810) Sound system
| Removal, installation | |||
| 1 | Open first aid kit cover and remove | Right rear load compartment | |
| 2 | Remove audio power amplifier | AR82.62-P-7720EE | |
| 3 | Remove insulating mat | ||
| 4 | Remove side paneling in rear | AR68.30-P-4780B | |

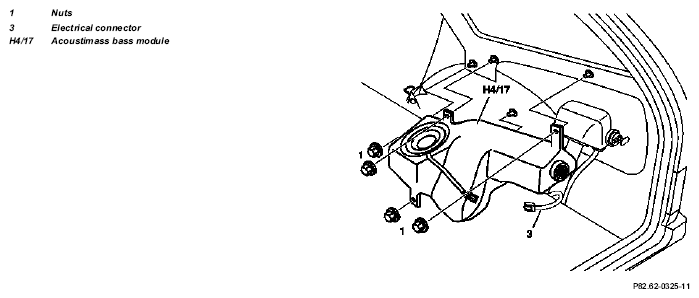

| 5 | Unscrew nuts (1) | ||
| 6 | Disconnect electrical connector (3) from bass module | ||
| 7 | Remove Acoustimass bass module (H4/17) | ||
| 8 | Reinstall in opposite order | ||
| 9 | Check for proper function |
