Retrofitting rear floor covering with seat cushion - AN68.20-P-4800-02FA

  1. Screw rear floor with cover to hinges.
  2. Lock seat cushion in clips (arrows).

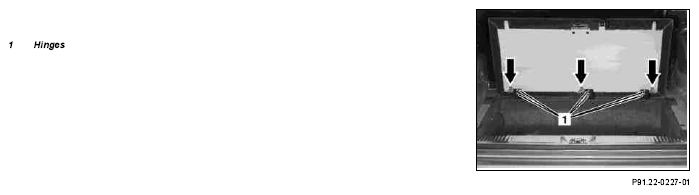

    Fig 1: Identifying Hinges
    G04632635Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  3. Screw seat cushion to floor (arrows).
  4. Seal holes for retaining strap of floor in stowage compartment with plastic clips.

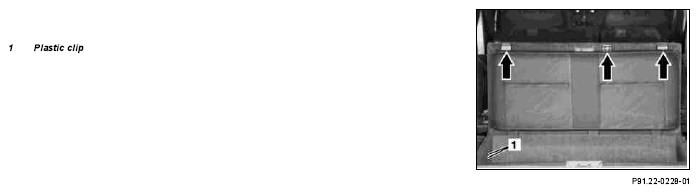

    Fig 2: Identifying Plastic Clips
    G04632636Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
