Subsequent conversion of portable cellular telephone - AZ82.70-P-0004A

MODEL 210 as of 1.7.98

with CODE (278) Complete telephone preinstallation without portable

with CODE (317) GSM portable cellular telephone (D2B)

with CODE (854) MB portable cellular telephone

except CODE (815) Dynamic navigation

for portable CTEL Nokia 5110, 5130, 6110, 6150, 6210

Illustrated on model 210 sedan

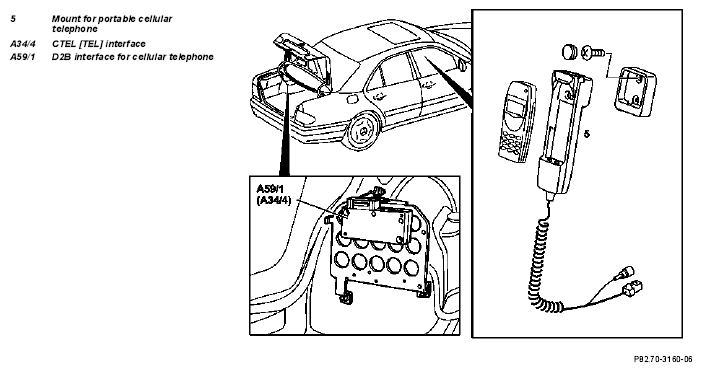

Fig 1: Identifying Subsequent Conversion Of Portable Cellular Telephone

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Notes on converting portable cellular telephone installation kit	Models 129, 168, 170, 202, 208, 210, 215, 220	AH82.70-P-0001-08A
	Removing
1	Remove holder for portable cellular telephone
		For installation in armrest.	AR82.70-P-8918C
		When installing on right side of center console	AR82.70-P-8918F
2.1	Remove C-pillar paneling on left	Only model 210.0 sedan.
2.2	Remove paneling on right D-pillar	Only model 210.2 T model
	Install
3	Install holder for portable cellular telephone
		For installation in armrest.	AR82.70-P-8918AC
		When installing on right side of center console	AR82.70-P-8918AB
4	Convert D2B portable cellular telephone interface
		For model 210.0 sedan	AR82.70-P-7379G
		For model 210.2 T model.	AR82.70-P-7379J
5	Retrofit resistor to compensator	For Nokia 6210 only.	AZ82.70-P-0001-11A
6	Install E-net compensator	Required only for dual-band operation Always necessary for Nokia 6210, if not already available.
		For model 210.0 sedan	AR82.70-P-0010B
		For model 210.2 T model.	AR82.70-P-0010C
7	Retrofit antenna lead to compensator	Required only for dual-band operation Always necessary for Nokia 6210, if not already available.
		For model 210.0 sedan	AZ82.70-P-0001-04AA
		For model 210.2 T model.	AZ82.70-P-0001-04BB
8	Carry out start-up and function test	According to applicable operating instructions for "Nokia telephone, ...".
