Removing and installing bracket for cellular telephone - AR82.70-P-8918AC

MODEL 210 as of 1.7.00 with CODE (854) MB cellular telephone Bracket for cellular telephone in armrest or stowage compartment, in combination with Audio 30 radio or COMAND

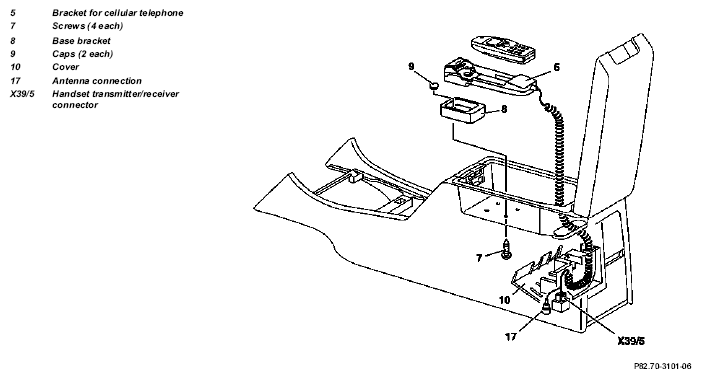

Fig 1: Identifying Bracket For Cellular Telephone Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Remove cellular telephone (5) from bracket
2	Open stowage shell and fold open cover (10)
3	Disconnect handset transmitter/receiver connector (X39/5) and antenna connection (17)
4	Unscrew bolts (7)
5	Pull bracket for cellular telephone (5) out of stowage compartment together with base bracket (8)	Carefully pull connection leads out of passage in stowage compartment.
6	Pull bracket for cellular telephone (5) out of base bracket (8)
7	Install in the reverse order
