Removing and installing bracket for cellular telephone - AR82.70-P-8918AB

MODEL 210 as of 1.7.00 with CODE (854) MB cellular telephone Holder for cellular (telephone) on right center console, in combination with Audio 10 or Audio 30 APS radio

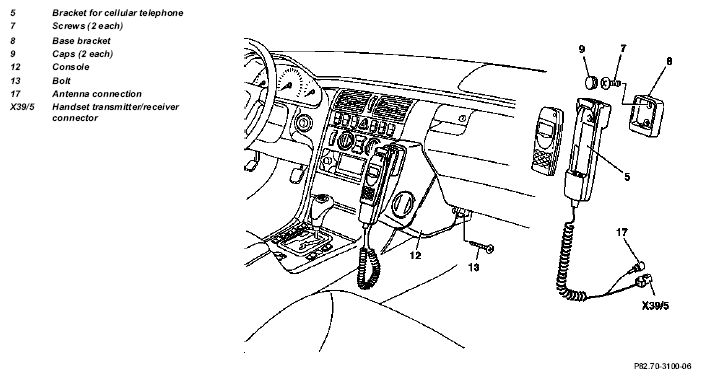

Fig 1: Identifying Bracket For Cellular Telephone Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Remove radio		AR82.60-P-7502EA
2	Remove cellular telephone from bracket (5)
3	Fold up cover on center console (screwed)		AR68.20-P-2350F
4	Remove spectacles and cassette compartment		AR68.20-P-2450F
5	Remove console (12)	The console (12) is inserted in the center console and secured with screw (13).
6	Disconnect handset transmitter/receiver connector (X39/5) and antenna connection (17)
7	Remove bracket for cellular telephone (5) from base bracket (8) and remove connection line from console (12)
8	Pull cap (9) out of base bracket (8)
9	Unscrew 2 screws (7) from base bracket (8) and lift base bracket (8)
10	Install in the reverse order
