Removing and installing cellular telephone interface - AR82.70-P-7379G
MODEL 210.0 up to 30.6.00 with CODE (316) MB GSM cellular telephone (D2B) with CODE (317) GSM cellular telephone (D2B)

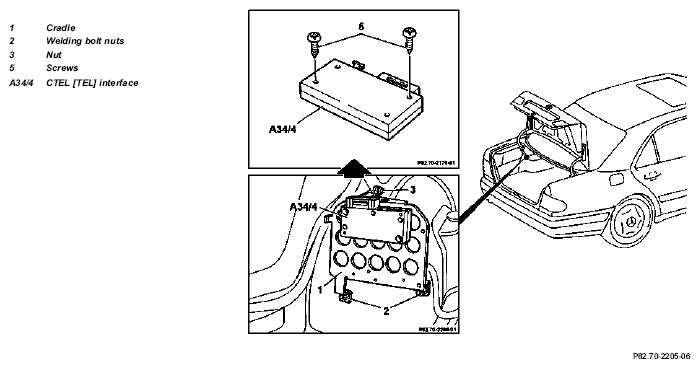

Illustrated on model 210 sedan with permanently installed telephone
Fig 1: Identifying Cellular Telephone Interface - Model 210 Sedan With Permanently Installed Telephone

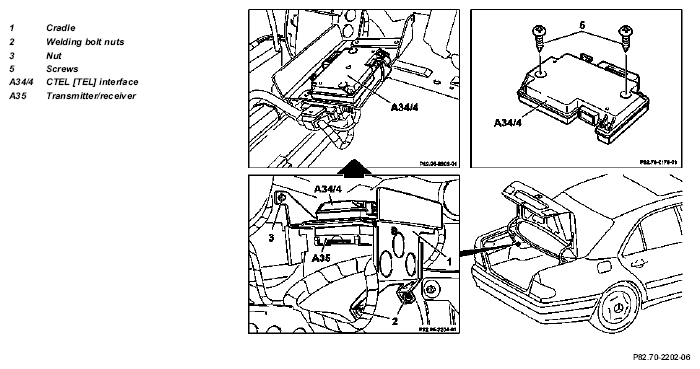

Illustrated on model 210 sedan with cellular telephone
| Removal, installation | |||
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury from caustic burns to eyes and skin from battery electrolyte or from handling damaged lead acid batteries. | No fire, sparks, naked flames or smoking. Wear acid-protective gloves, clothing and eye protection. Pour battery electrolyte only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 1 | Disconnect ground cable of battery | AR54.10-P-0003A | |
| Notes on battery | All models. | AH54.10-P-0001-01A | |
| 2 | Remove side cover on left side of trunk | ||
| 3 | Unscrew welding bolt nut (2) from cradle (1) | ||
| 4 | Unscrew nut (3) from side wall | ||
| 5 | Lift cradle (1) with all control modules out of wheelhouse and place in trunk | ||
| 6.1 | Release connectors on telephone interface (A34/4) and disconnect | ||
| 6.2 | Release fiber optic cable and disconnect | ||
| 7 | Unscrew screws (6) | ||
| 8 | Lift telephone interface (1) out of cradle | ||
| 9 | Install in the reverse order |
