Retrofitting voice control system - AN82.70-P-0001B
MODEL 210.2## 1# up to 1.9.98 except CODE (316) MB GSM cellular telephone (D2B) except CODE (317) GSM portable cellular telephone (D2B)
| Removal | |||
| Retrofit voice control system | AH82.70-P-0001-01A | ||
| 1 | Disconnect battery | ||
| AR54.10-P-0003A | |||
| 2 | Open fuse and relay box (F1) | ||
| 3 | Remove front left and right and also rear right entrance trim plates | ||
| 4 | Open front left and right and also rear right cable ducts | ||
| 5 | Remove paneling from right C-pillar | ||
| 6 | Remove cover on center console | ||
| AR68.20-P-2350F | |||
| 7 | Remove knee guard below instrument panel on left | ||
| 8 | Remove floor covering in driver footwell on left and right | ||
| 9 | Remove luggage compartment trim on right | ||
| 10 | Fold forward rear seat cushions | ||
| 11 | Remove rear trim, headliner | ||
| 12 | Remove steering wheel | ||
| 13 | Remove radio | ||
| 14 | Remove wood trim of center console | ||
| 15 | Remove jacket tube | ||
| 16 | Remove overhead control panel | ||
| Installation | |||
| 17 | Retrofit voice control system wiring harness | AN82.70-P-0001-01B | |
| 18 | Retrofit voice control system activation switch | AN82.70-P-0002-02A | |
| 19 | Retrofit telephone/voice control system transmitter/receiver | AN82.70-P-0001-03B | |
| 20 | Retrofit hands-free system microphone | AN82.70-P-8969-04A | |
| 21 | Retrofit handset on center console | AN82.70-P-8916-05A | |
| 22 | Retrofit roof antenna | AN82.70-P-8951-06B | |

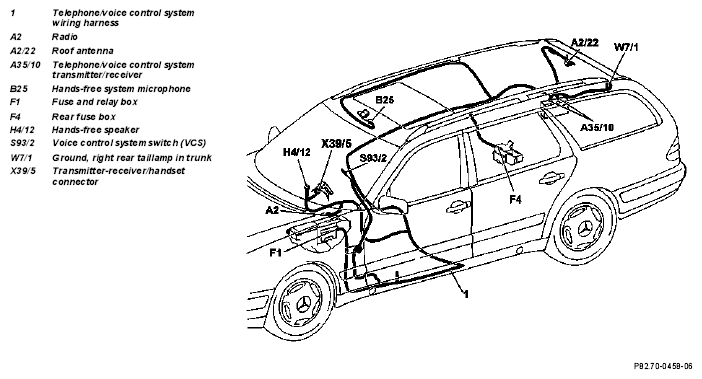

| Figure | |||
| 23 | Reassemble vehicle 16-1 | ||
| 24 | Carry out operational check |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| KG 82 | Transmitter/receiver with voice control | 1 |
| KG 82 | Telephone wiring harness with voice control | 1 |
| KG 54 | Switch for cruise control and voice control | 1 |
| KG 82 | Antenna (depending on vehicle equipment) | 1 |
| KG 68 | Jacket tube covering (depending on vehicle equipment) | 1 |
| KG 82 | Hands-free system microphone | 1 |
| KG 68 | Telephone console (depending on vehicle equipment) | 1 |
| KG 82 | Permanently installed telephone | 1 |
