Retrofitting handset at center console - AN82.70-P-8916-05A

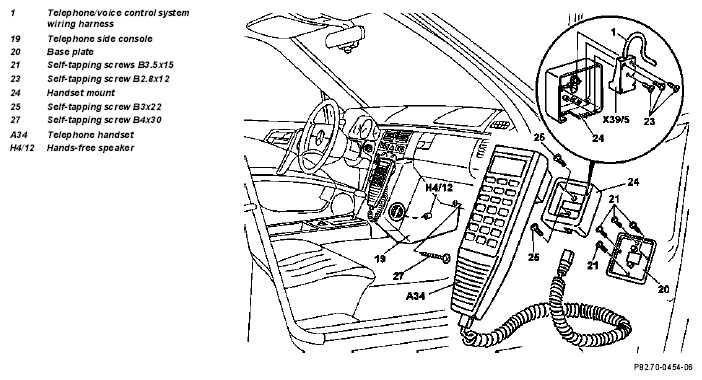

Fig 1: Identifying Handset At Center Console Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Plug in connector of transmitter/ receiver, handset (X39/5) and handsfree speaker (H4/12) and fix with felt.
2. Install handset (A34) as illustrated on side console (19).
3. Fit side console (19) as illustrated onto center console (is clamped below wood trim).
