Retrofitting voice control system activation switch - AN82.70-P-0002-02A

  1. Install new casing tube trim (depending on constructional state, version with or without cruise control recess).

    2. Models without cruise control

  2. Run voice control system activation switch (S93/2) cable along existing cables to the retaining strip (6) below dash panel.
  3. Install voice control system activation switch (S93/2) as illustrated on steering column.

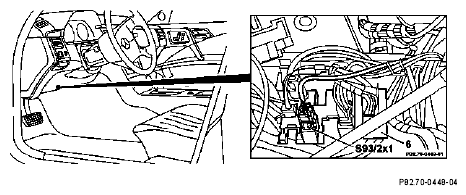

    Fig 1: Identifying Voice Control System Activation Switch
    G04634165Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

    4. Models with cruise control

  4. Remove cruise control switch (is no longer required).

    IMPORTANT

    Voice control system activation switch (S93/2) and cruise control switch (S40) are one unit.

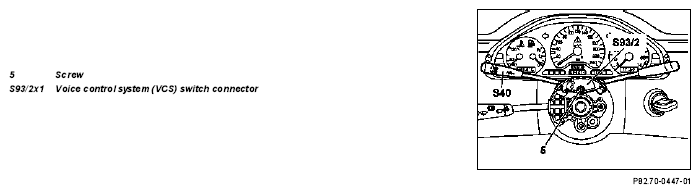

    Fig 2: Identifying Screw And Voice Control System (VCS) Switch Connector
    G04634166Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
  5. Run voice control system activation switch (S93/2) and cruise control switch (S40) cable along existing cables to the retaining strip (6) below dash panel.
  6. Install voice control system activation switch (S93/2) and cruise control switch (S40) as illustrated on steering column.
  7. Plug in cruise control connector.

    8. All models

  8. Plug in intermediate connector (S93/2x1) and clip into retaining strip (6).
