Retrofitting telephone/voice control system transmitter/receiver - AN82.70-P-0001-03B

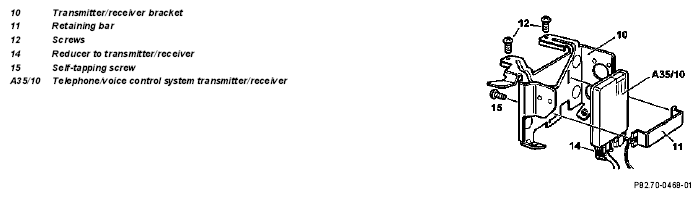

Fig 1: Identifying Telephone/Voice Control System Transmitter/Receiver Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Fit telephone/voice control system transmitter/receiver (A35/10) with retaining bar (11) onto bracket (10) and connect.
2. Install transmitter/receiver bracket (10) as illustrated in left of trunk.
   Fig 2: Identifying Transmitter/Receiver Bracket

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
