Retrofitting TrafficStar navigation system - AZ82.61-P-0001E

MODEL 210 up to 30.6.99 except CODE (750a) MB radio Audio 30 RDS except CODE (753) MB radio Audio 10 RDS except CODE (756a) MB radio Audio 10 RDS with CD compartment except CODE (810) Sound system except CODE (819) CD changer in trunk with 6 CD's

System illustration

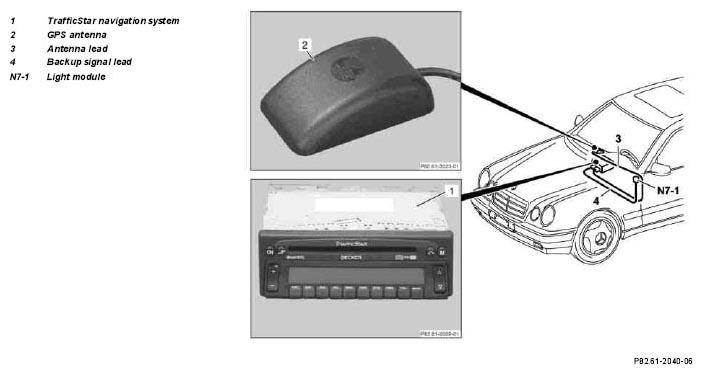

Fig 1: Identifying TrafficStar Navigation System Components Location

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Notes on TrafficStar navigation system	Models 129, 140, 163, 168, 170, 202, 208, 210	AH82.61-P-0001-03A
	Notes on positioning GPS antenna, TrafficStar	Models 140 and 210 with air conditioning (automatic)	AH82.61-P-0001-02A
	Removal
1	Disconnect ground lead from battery
			AR54.10-P-0003A
2	Remove radio
3	Remove cover below left instrument panel
			AR68.10-P-1500F
	Only for vehicles with GPS antenna on instrument panel
4.1	Remove left A-pillar paneling	Only in area of instrument panel
			AR68.30-P-4050F
4.2	Detach front left door weather strip
4.3	Remove F3 fuse box cover
	Only model 210.0 with GPS antenna on rear shelf
5.1	Remove rear shelf
			AR68.30-P-4580F
5.2	Remove left front floor covering
			AR68.20-P-2050F
5.3	Remove left front and rear cable ducts
	Installation
6.1	Retrofit TrafficStar GPS antenna on instrument panel	See notes on positioning GPS antenna	AZ82.61-P-0001-01A
6.2	Retrofit TrafficStar GPS antenna on rear shelf	For model 210.0 only	AZ82.61-P-0001-03B
7	Connect TrafficStar radio and navigation system		AZ82.61-P-0001-02C
8	Reassemble vehicle, 5-1 or 4-1
9	Carrying out start-up and function check		AZ82.61-P-0001-04A
