Retrofitting TrafficStar GPS antenna on rear shelf - AZ82.61-P-0001-03B

Model 210

GPS antenna on rear shelf

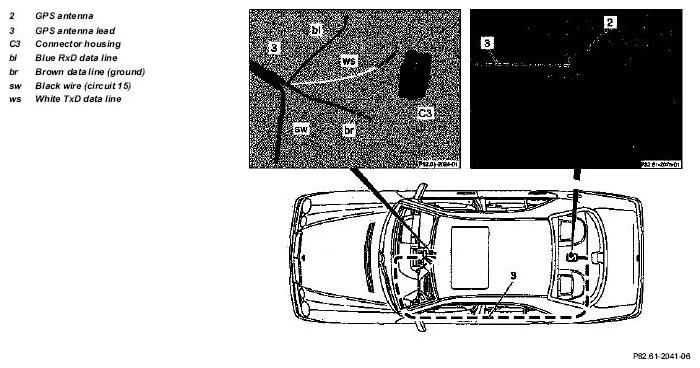

Fig 1: Identifying TrafficStar GPS Antenna On Rear Shelf Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Fasten GPS antenna (2) at distance of h = 100 mm at center from center of high-mounted stop lamp. Mark hole (a) for antenna lead (3). (Position GPS antenna with lead pointing toward rear window.)
2. Drill hole (a) with 5 mm dia.
3. Pull antenna lead (3) through hole passage (a) and fasten GPS antenna (3) with double-sided tape onto rear shelf.
4. Fasten antenna lead (3) inside of the first aid kit with felt and route to radio shaft on left side of vehicle.
   Fig 2: Identifying Antenna Hole Dimension

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
5. Insert TxD data line (ws) into chamber 16 and RxD data line (bl) into chamber 15 of connector housing (C3) from parts kit.
   Fig 3: Inserting TxD Data Line (ws) Into Chamber 16 And RxD Data Line (bl) Into Chamber 15 Of Connector Housing

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
6. Solder brown wire (br) for GPS antenna to lead for radio connector (A) chamber 8 and insulate.
7. Solder black wire (sw) for GPS antenna to lead for radio connector (A) chamber 7 and insulate.
   Fig 4: Identifying Radio Connector

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
