Retrofitting TrafficStar radio and navigation system - AZ82.61-P-0001-02C

Models 210, 208.4

System illustration illustrated on model 210

Fig 1: Identifying TrafficStar Radio And Navigation System Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Extend backup signal lead (2) from parts set by approx. 1.5 m using commercially available, 0.75 mm ² wire.
2. Route backup signal lead (2) from light module (N7-1) along existing wiring harness to radio shaft.

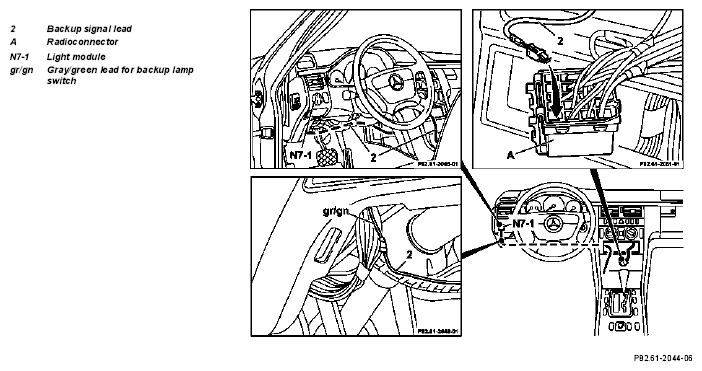

   Fig 2: Identifying Backup Signal Lead

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
3. Check gray/green wire for backup lamp switch from standard wiring harness in light module (N7-1) chamber 1 and expose.

   If color code differs, lead connection is decisive (if necessary check wiring diagram).

   Model 210, gray/green wire from backup lamp switch.

   Model 208.4, gray/yellow wire from backup lamp switch.

4. Solder backup signal lead (2) to gray/green wire (gr/gn) from light module (N7-1) and insulate.
   Fig 3: Identifying Light Module

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
5. Insert free connector contact into backup signal lead (2) in radio connector (A) chamber 2.
   Fig 4: Inserting Free Connector Contact Into Backup Signal Lead In Radio Connector Chamber 2

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
6. Connect radio connector (A) and connector (C3) for GPS antenna with TrafficStar radio and navigation system.
7. Connect radio antenna.
8. Install TrafficStar (1) radio and navigation system.
   Fig 5: Identifying TrafficStar Radio And Navigation System

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
