Retrofitting Linguatronic voice control system - AN82.70-P-0004CD
MODEL 210.2## 1# up to 30.6.00 with CODE (316) MB GSM cellular telephone (D2B) with CODE (317) GSM portable cellular telephone (D2B) except CODE (347) TELE AID emergency call system (D2B)
MODEL 210.2## 1# as of 1.7.00 with CODE (852) CTEL preinstallation assembly at dome with CODE (853) MB standard cellular telephone with CODE (854) MB portable cellular telephone except CODE (855) TELE AID
| Notes on fiber optic | Models 129, 168, 170, 202, 208, 210, 215, 220 | AH82.70-P-0001-02A | |
| Removal | |||
| 1 | Disconnect battery | ||
| AR54.10-P-0003A | |||
| 2 | Remove all front and rear door sill moldings | ||
| 3 | Open left and right wiring ducts | ||
| 4 | Remove radio | ||
| 5 | Remove cover from center console | ||
| AR68.20-P-2350F | |||
| 6 | Remove knee guard below instrument panel on left | ||
| 7 | Remove floor covering in driver footwell on left and right | ||
| 8 | Remove driver's and passenger seat | ||
| 9 | Remove paneling on right A-pillar | ||
| 10 | Remove load compartment covering | ||
| 11 | Remove rear seat cushion | ||
| 12 | Fold back backrest | ||
| 13 | Remove steering wheel | ||
| AR46.10-P-0100B | |||
| 14 | Remove instrument cluster | ||
| AR54.30-P-6015EA | |||
| 15 | Remove jacket tube covering | ||
| 16 | Remove roof control unit | ||
| Install | |||

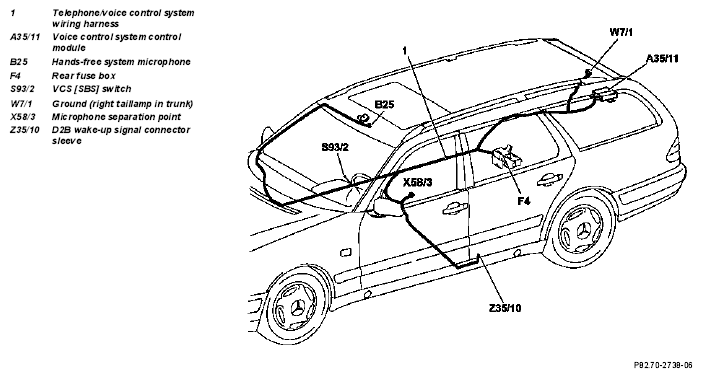

| 17 | Retrofit Linguatronic voice control system wiring harness | AN82.70-P-0004-01CD | |
| 18 | Retrofit fiber optic wiring harness | On vehicles with code 316 and 853 and without code 819. | AN82.70-P-0002-01CD |
| On vehicles with code 819. | AN82.70-P-0002-01CE | ||
| On vehicles with code 317 and 852 or 854 and without code 819. | AN82.70-P-0002-01CF | ||
| 19 | Field installation of Linguatronic voice-controlled system | AN82.70-P-0004-02CC | |
| 20 | Retrofit Linguatronic voice control system control module | AN82.70-P-0004-04CD | |
| 21 | Fit remaining parts to vehicle 16-1 | ||
| 22 | Read out actual/nominal configuration with STAR DIAGNOSIS and reconfigure D2B components and enable instrument cluster | ||
| 23 | Carry out function check |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| A000 540 38 08 | Fiber optic cable module (order with length specification 5780 mm) (with codes 316 and 853) | 2 |
| Group 82 (see EPC) | Fiber optic cable module (order with length specification 540 mm) (with code 819 and without code 317 and 852 and 854) | 1 |
| Group 82 (see EPC) | Control module mount (if required) | 1 |
| A210 440 58 05 | Linguatronic voice control system wiring harness | 1 |
| A203 820 33 26 | Linguatronic voice control system control module (language: German) | 1 |
| Group 82 (see EPC) | Cruise control/voice control system switch (order if vehicle equipment deviates in group 82) | 1 |
| Group 82 (see EPC) | VCS lever | 1 |
| Design group 46 (see EPC) | Jacket tube covering (order according to vehicle equipment if required) | 1 |
| Group 82 (see EPC) | Coupling bottom section | 1 |
| Group 82 (see EPC) | Coupling bottom section | 1 |
