Retrofit illuminated entrance trim panel - AZ82.20-P-0001CB
MODEL 210.### 1# with CODE (800) Model year 2000
| Remove | |||
| Risk of death. Death may result if contact is made with parts carrying high voltages. | Do not touch parts which conduct high voltages. Persons who wear electronic implants (e.g. heart pacemakers) must not carry out any work on such components. | AS00.00-Z-0020-01A | |
| 1 | Connect quiescent current retention unit | *WH58.30-Z-1012-09A | |
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fire, sparks, naked flames or smoking. Wear acid-resistant gloves, clothing and glasses. Pour battery electrolyte only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 2 | Disconnect ground cable of battery | ||
| AR54.10-P-0003A | |||
| Notes on battery | All models | AH54.10-P-0001-01A | |
| 3 | Remove rear seat and rear backrest | ||
| models 210.0 | AR91.12-P-1700F | ||
| Model 210.2 | AR91.12-P-1700FA | ||
| 4 | Open rear fuse box (F4) | ||
| 5 | Remove inner and outer left and right front sill moldings | ||
| 6 | Pull off rubber door seal near the B-pillar on both sides at the front | ||
| 7 | Remove lower B-pillar molding on both sides of the vehicle | ||
| 8 | Open cable ducts on both sides of the vehicle at the front and rear | ||
| Install | |||
| 9 | Route cable harness for illuminated entrance trim panel | AZ82.20-P-0001-02CB | |

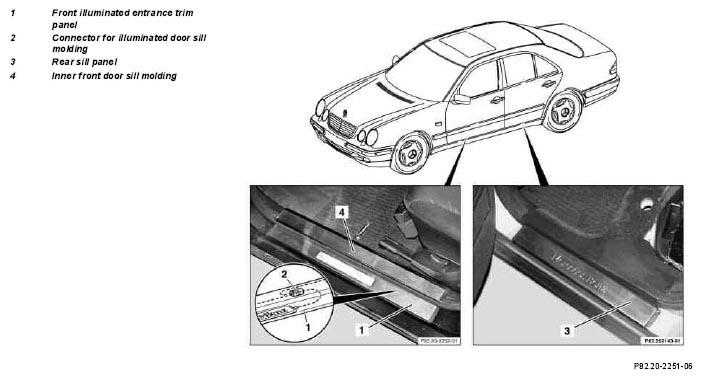

| 10 | Retrofit illuminated door sill molding (1) | AZ82.20-P-0001-01CB | |
| 11 | Check for proper function | ||
| 12 | Fit remaining parts to vehicle | ||
| 13 | Stick rear sill panels (3) onto standard sill panel |
Commercially available tools
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| B6 689 00 51 | Illuminated entrance trim panels with cable harness | 1 |
| B6 689 00 16 | Lighting film, blue | 1 |
| B6 689 00 17 | Lighting film, green | 1 |
| B6 689 00 18 | Yellow luminous foil | 1 |
| A008 545 79 26 | Contact springs for rear SAM fuse strip, single (order depending on the vehicle equipment) | as required |
| A006 545 70 26 | Contact springs for rear SAM fuse strip, double (order depending on the vehicle equipment) | as required |
| A008 545 80 26 | Contact springs for rear SAM fuse strip, triple (order depending on the vehicle equipment) | as required |
