Retrofit illuminated door sill molding - AZ82.20-P-0001CA
MODEL 210.### 1# as of 1.3.97 up to 30.6.99
| Removal | |||
| Hazard from contact with parts conducting high voltages. | Do no touch parts conducting high voltages. Persons who wear electronic implants (e.g. heart pacemakers) must not perform any work on these components. | AS00.00-Z-0020-01A | |
| 1 | Connect quiescent current retention unit. | *WH58.30-Z-1012-09A | |
| 2 | Disconnect ground cable of battery | ||
| AR54.10-P-0003A | |||
| 3 | Remove rear seat and rear seat backrest | ||
| Model Series 210.0 | AR91.12-P-1700F | ||
| Model 210.2 | AR91.12-P-1700FA | ||
| 4 | Open rear fuse box (F4) | ||
| 5 | Remove front door sill moldings for left and right side of vehicle | ||
| 6 | Remove lower B-pillar molding on both sides of the vehicle | ||
| 7 | Open cable ducts on both sides of the vehicle at the front and rear | ||
| Install | |||
| 8 | Route wiring harness for illuminated door sill molding | AZ82.20-P-0001-02CA | |

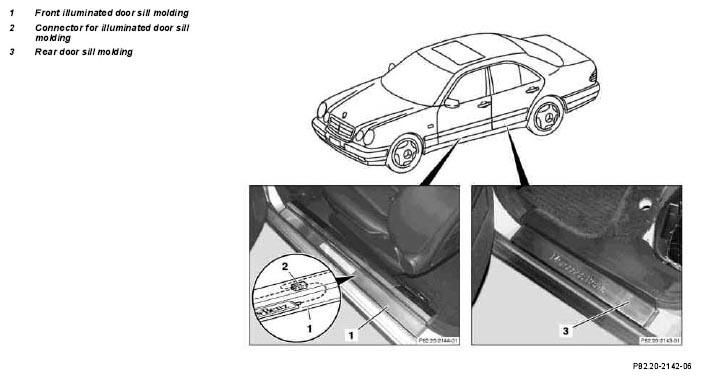

| 9 | Retrofit illuminated entrance trim panel (1) | AZ82.20-P-0001-01A | |
| 10 | Carry out function check | ||
| 11 | Fit remaining parts to vehicle | ||
| 12 | Stick rear sill panels (3) onto standard sill panel |
Commercially available tools
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| B6 689 00 10 | Illuminated door sill moldings with wiring harness | 1 |
| B6 689 00 16 | Lighting film, blue | 1 |
| B6 689 00 17 | Lighting film, green | 1 |
| B6 689 00 18 | Lighting film, yellow | 1 |
