Installing illuminated door sill molding - AZ82.20-P-0001-01A

Models 129, 170, 202, 208, 210

Illustrated on model 208

1. Attach illuminated foil (3) to bottom of metal door sill molding (1) with tape.

   The silver side of the illuminated foil (3) does not light up.

2. Align metal and standard door sill molding as shown in figure and mark passage hole (4) (arrow) at height of cable outlet of illuminated foil (3) on standard door sill molding (2) and cut 20 mm dia. hole.

   Clean standard door sill molding with cleaning cloth.

3. Glue metal door sill molding (1) onto standard door sill molding (2).
4. Fasten connection cable for illuminated foil to bottom of standard door sill molding (2) with tape (6). Glue on felt (7) in area of beaded edge (arrow).

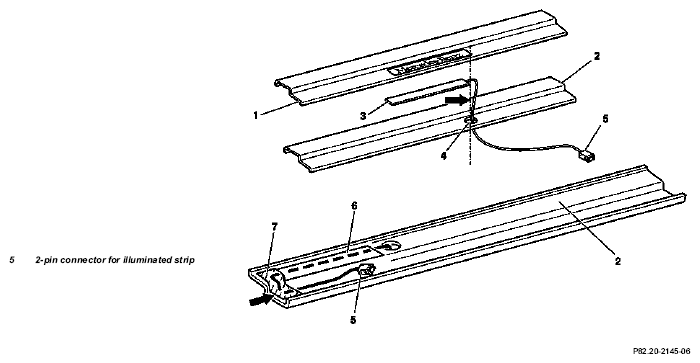

   Fig 1: Identifying Illuminated Door Sill Molding

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
5. Connect 2-pin connector (11) from wiring harness with 2-pin connector for illuminated strip (5) and position in cable duct.
6. Clip in illuminated door sill molding (1).
   Fig 2: Identifying 2-Pin Connector

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
