Retrofit fixed-installation telephone - AN82.70-P-0003F
MODEL 210.2 as of 1.7.99 up to 30.6.00 except CODE (317) GSM portable CTEL (D2B) except CODE (347) TELE AID emergency call system (D2B) with CODE ((819) 6-disk CD changer in combination with D2B fiber optical cable and COMAND or Audio series radio
| Notes on telephone retrofitting | Models 129, 168, 170, 208, 210. | AH82.70-P-0001-04A | |
| Notes on fiber optic | Models 129, 168, 170, 202, 208, 210, 220. | AH82.70-P-0001-02A | |
| Removal | |||
| 1 | Disconnect ground cable of battery | ||
| AR54.10-P-0003A | |||
| 2 | Remove driver's and passenger seat | ||
| 3 | Remove radio | ||
| 4 | Lift floor covering on driver and passenger side | ||
| AR68.20-P-2050F | |||
| 5 | Open left and right wiring ducts | ||
| 6 | Remove A-pillar paneling at bottom left | ||
| 7 | Open front fuse and relay box | ||
| 8 | Lift rear seat cushion | ||
| 9 | Open rear compartment fuse box | ||
| 10 | Remove loading-space lining at left and right | ||
| 11 | Remove A-pillar paneling at top left | ||
| 12 | Remove roof control unit | ||
| 13 | Detach front and rear roof lining | ||
| 14 | Remove D-pillar paneling on left | ||
| Install | |||
| 15 | Retrofit fiber optic wiring harness | AN82.70-P-0002-01FF | |
| 16 | Cover optical wave guide | ||
| AR82.95-P-0005-01A | |||
| 17 | Retrofit telephone cable harness | AN82.70-P-0002-03EE | |
| 18 | Installing handsfree system microphone | ||
| AR82.70-P-8969C | |||
| 19 | Retrofit roof antenna | AN82.70-P-8951-06B | |

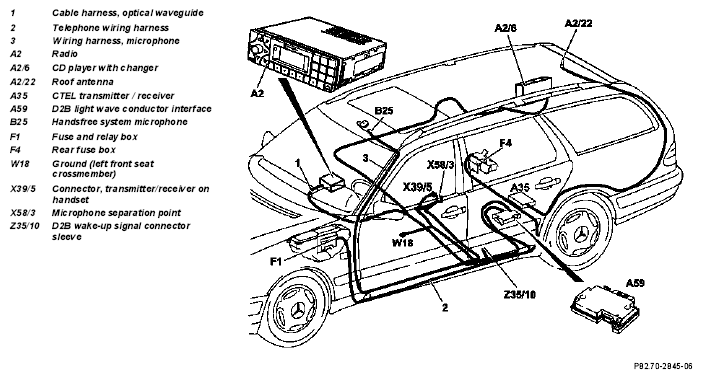

| Figure | |||
| Figure | |||
| 20 | Install handset in armrest stowage compartment | ||
| AR82.70-P-8915B | |||
| 21 | Install telephone interface | ||
| AR82.70-P-7379F | |||
| 22 | Installing transmitter/receiver | ||
| AR82.70-P-8911F | |||
| 23 | Fit remaining parts to vehicle 14 -1 | ||
| 24 | Perform startup and function check |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| Design Group 82 (see EPC) | Transmitter/receiver unit | 1 |
| Design Group 82 (see EPC) | Control module | 1 |
| Design Group 82 (see EPC) | Cable harness, optical wave guide | 1 |
| Design Group 82 (see EPC) | Handsfree microphone (order in accordance with vehicle equipment) | 1 |
| Design Group 82 (see EPC) | Roof antenna | 1 |
| Design Group 82 (see EPC) | Cap | 1 |
| A210 540 15 32 | Telephone wiring harness | 1 |
| A210 540 26 32 | Microphone cable | 1 |
| Design Group 82 (see EPC) | Transmitter/receiver unit bracket | 1 |
| Design Group 82 (see EPC) | Adapter cable harness, transmitter/receiver unit | 1 |
| Design Group 82 (see EPC) | Handset | 1 |
| Design Group 82 (see EPC) | Mount | 1 |
| Design Group 82 (see EPC) | Mounting plate | 1 |
| A202 820 00 04 | Spiral cable | 1 |
| Design Group 82 (see EPC) | Spring | 1 |
| A000 995 61 44 | Clamp | 1 |
| Design group 68 (see EPC) | Center console for telephone (order according to vehicle equipment) | 1 |
