Removing and installing transmitter/receiver unit - AR82.70-P-8911F

MODEL 210.2 up to 30.6.00 with CODE (316) MB GSM cellular telephone (D2B)

Illustrated on model 210 T-model

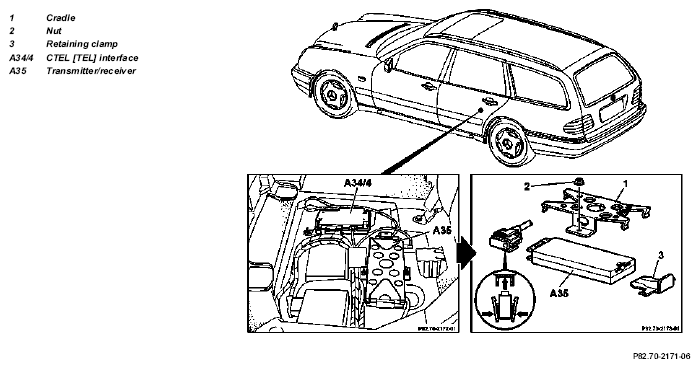

Fig 1: Identifying Transmitter/Receiver Unit Components - Model 210.2 Up To 30.6.00

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Connect quiescent current retention unit		*WH58.30-Z-1012-09A
	Risk of explosion  from explosive gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  from caustic burns to eyes and skin from battery electrolyte or from handling damaged lead acid batteries.	No fire, sparks, naked flames or smoking. Wear acid-protective gloves, clothing and eye protection. Pour battery electrolyte only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
2	Disconnect ground cable of battery	Insulate cable terminal of ground lead to prevent unintentional contact between the disconnected ground lead and ground point W10.	AR54.10-P-0003A
	Notes on battery	All models.	AH54.10-P-0001-01A
3	Fold up left rear bench seat
4	Remove cover below rear seat
5	Unscrew nut (2)
6	Remove cradle (1)	Do not damage connection lines.
7	Release connector on transmitter/receiver (A35) and disconnect
8	Disconnect antenna cable from transmitter/receiver (A35)
9	Pull out transmitter/receiver (A35) upward
10	Install in the reverse order
