Retrofitting fiber optic wiring harness - AN82.70-P-0002-01FF

Model 210.2 as of 1.7.99

1. Expose fiber optic wiring harness located in vehicle, disconnect from radio (A2) and CD player with changer (A2/6) and remove from vehicle (no longer required).

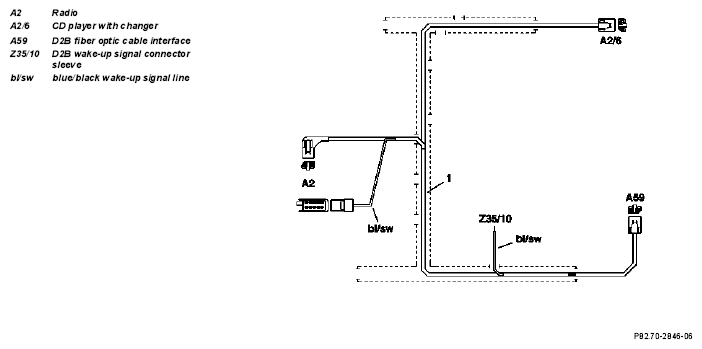

   Fig 1: Identifying Fiber Optic Wiring Harness Components

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
2. Prepare new fiber optic wiring harness (1) as shown in figure.

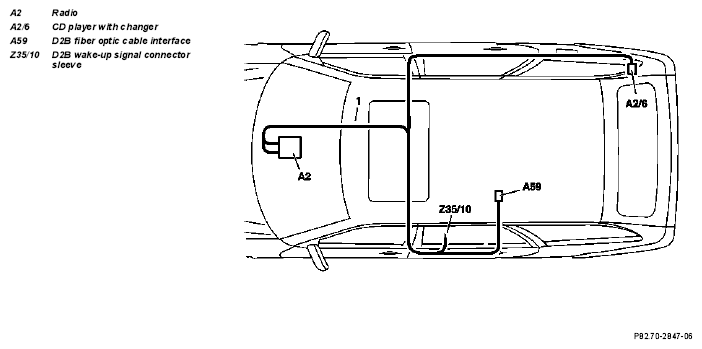

   Fig 2: Identifying Fiber Optic Wiring Harness Components

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
3. Route wiring harness (1) along existing lines in vehicle as shown in figure.

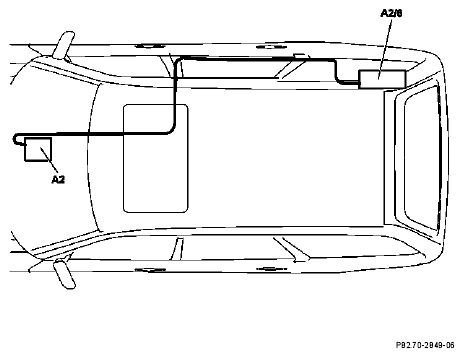

   Fig 3: Identifying Fiber Optic Cable Wiring Harness Components

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
4. Route tieout from fiber optic wiring harness (1) to radio in radio shaft.

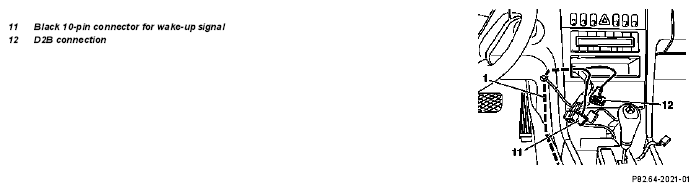

   Fig 4: Identifying Black 10-Pin Connector For Wake-Up Signal And D2B Connection

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
5. Route tieout from radio (A2) in wiring duct below driver and passenger seats as shown in figure and fasten with felt.

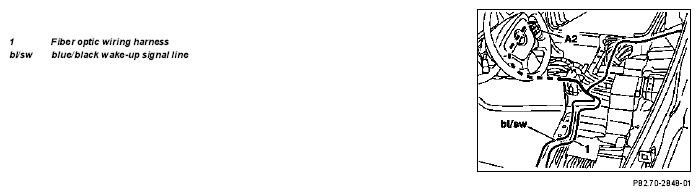

   Fig 5: Identifying Fiber Optic Wiring Harness And Blue/Black Wake-Up Signal Line

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
6. Insert/blue/black (bl/sw) lead from wiring harness (1) as wake-up signal connector sleeve (Z35/10) on wiring duct on left B-pillar (will be soldered to telephone wiring harness later).
   Fig 6: Identifying Wake-Up Signal Connector Sleeve

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
7. Connect fiber optic wiring harness (1) to D2B fiber optic cable interface (A59) below left rear seat as shown in figure.
   Fig 7: Identifying D2B Fiber Optic Cable Interface

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
8. Route fiber optic cable (1) from right wiring duct to load compartment as shown in figure.
9. Connect fiber optic cable (1) to CD player with changer (A2/6).
   Fig 8: Identifying Fiber Optic Cable

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
