Retrofit cell phone - AN82.70-P-0002B
MODEL 210.0 as of 1.7.98 up to 30.6.99 except CODE (278) Complete telephone preinstallation without portable with CODE (750a) MB radio Audio 30 RDS except CODE (347) TELE AID emergency call system (D2B) except CODE (351) Auto Pilot System (APS) with CODE (819) 6-disk CD changer except CODE (273) Provision for D-network portable CTEL in combination with D2B fiber optical cable
MODEL 210.0 as of 1.7.99 up to 30.6.00 except CODE (278) Complete telephone preinstallation without portable except CODE (347) TELE AID emergency call system (D2B) except CODE (351) Auto Pilot System (APS) with CODE (819) 6-disk CD changer in combination with D2B fiber optical cable and COMAND or Audio series radio
| Notes on telephone retrofitting | Models 129, 168, 170, 208, 210. | AH82.70-P-0001-04A | |
| Notes on fiber optic | Models 129, 168, 170, 202, 208, 210, 220. | AH82.70-P-0001-02A | |
| Removal | |||
| 1 | Disconnect ground cable of battery | ||
| AR54.10-P-0003A | |||
| 2 | Remove driver's seat | ||
| 3 | Lift floor covering on driver's side | ||
| AR68.20-P-2050F | |||
| 4 | Open left wiring duct | ||
| 5 | Remove A-pillar paneling at bottom | ||
| 6 | Open front fuse and relay box | ||
| 7 | Open rear compartment fuse box | ||
| 8.1 | Remove center console | ||
| 8.2 | Remove cover from center console | ||
| AR68.20-P-2350F | |||
| 9 | Remove rear seat and rear seat backrest | ||
| AR91.12-P-1700F | |||
| 10 | Remove paneling in trunk on left | ||
| 11 | Remove A-pillar paneling at top | ||
| 12 | Remove roof control unit | ||
| 13 | Detach front and rear roof lining | ||
| Install | |||
| 14 | Install optical wave guide module | ||
| AR82.70-P-0004-01A | |||
| 15 | Extend cable harness, D2B optical wave guide | AN82.70-P-0002-01C | |
| 16 | Cover optical wave guide | ||
| AR82.95-P-0005-01A | |||
| 17 | Retrofit telephone cable harness | AN82.70-P-0002-03B | |
| 18 | Install telephone interface | ||
| AR82.70-P-7379G | |||
| 19 | Retrofit roof antenna | AN82.70-P-8951-06A | |

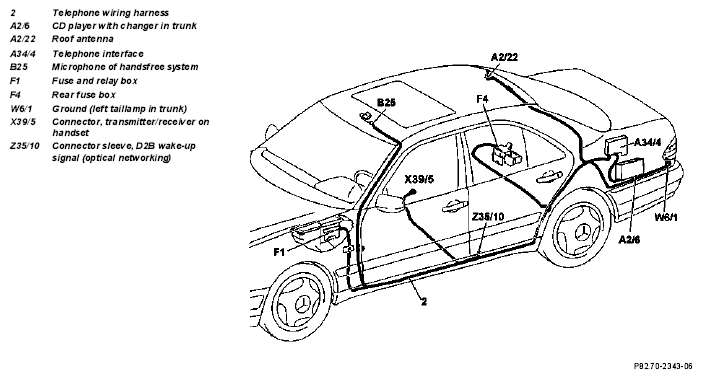

| Figure | |||
| Figure | |||
| Depending on the installation location of the Nokia 3110 portable CTEL, different parts to be ordered. Please discuss the installation location with the customer. | |||
| 20.1 | Install Nokia 3110 portable CTEL bracket in armrest | ||
| AR82.70-P-8918C | |||
| 20.2 | Install bracket for Nokia 3110 portable CTEL (telephone) on center console | ||
| AR82.70-P-8918F | |||
| 21 | Fit remaining parts to vehicle 14 - -1 | ||
| 22 | Perform startup and function check | *WH58.30-Z-1036-13A |
Commercially available tools
| Number | Designation | |
|---|---|---|
| WH58.30-Z-1036-13A | Handheld tester (HHT) | 651 100 01 99 |
Parts ordering notes
| Part no. | Designation | Quantity |
|---|---|---|
| Design Group 82 (see EPC) | Nokia 3110 TS cellular phone | 1 |
| Design Group 82 | Control module bracket (order in accordance with vehicle equipment) | 1 |
| Design Group 82 (see EPC) | Control module | 1 |
| Design Group 82 (see EPC) | Fiber optic cable module (order with length specification 540 mm ) | as required. |
| Design Group 82 (see EPC) | D2B clutch housing | 1 |
| Design Group 82 (see EPC) | Handsfree microphone (order in accordance with vehicle equipment) | 1 |
| Design Group 82 (see EPC) | Roof antenna | 1 |
| Design Group 82 (see EPC) | Cap | 1 |
| Design Group 82 (see EPC) | Telephone wiring harness | 1 |
| Design Group 82 (see EPC) | Microphone cable | 1 |
| Additionally for installation in armrest | ||
| Design Group 82 (see EPC) | Mount | 1 |
| Design Group 82 (see EPC) | Plate | 1 |
| Design Group 82 (see EPC) | Cable | 1 |
| Additionally for installation in center console | ||
| Design Group 82 (see EPC) | Console for Nokia 3110 portable CTEL | 1 |
| Design Group 82 (see EPC) | Bracket | 1 |
| A 168 820 00 11 | Plate | 1 |
