Retrofitting ultrasonic backup assist - AZ54.65-P-0001FF

MODEL 210.0 /6 as of 1.7.99 with CODE (809) Model year 1999

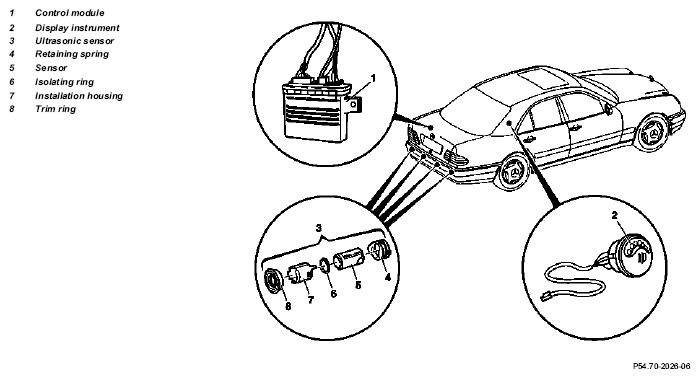

Fig 1: Identifying Retrofitting Ultrasonic Backup Assist - Model 210.0 /6 As Of 1.7.99

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removing
1	Disconnect ground cable from battery
			AR54.10-P-0003A
2	Remove rear bumper
			AR88.20-P-2200F
3	Take impact member out of bumper
4	Remove CD player with changer	If fitted.
			AR82.64-P-7507EA
5	Remove side trim in left of trunk
			AR68.30-P-4780B
6	Remove trim on right C-pillar
	Installing
7	Paint sensors and trim rings		AZ54.65-P-0001-01FF
8	Install and connect sensors		AZ54.65-P-0001-03FF
9	Insert impact member in bumper
10	Install rear bumper	Route connection cable of sensor wiring harness into the trunk through the left grommet in the wheelhousing recess.
			AR88.20-P-2200F
11	Install control module		AZ54.65-P-0001-04FF
12	Install display instrument		AZ54.65-P-0001-05FF
13	Route and connect wiring harness		AZ54.65-P-0001-06FF
14	Finish work on the vehicle
15	Check ultrasonic backup assist		AZ54.65-P-0001-07A
16	Issue manufacturer's safety/operating instructions when handing over the vehicle to the customer
