Installing control module - AZ54.65-P-0001-04FF

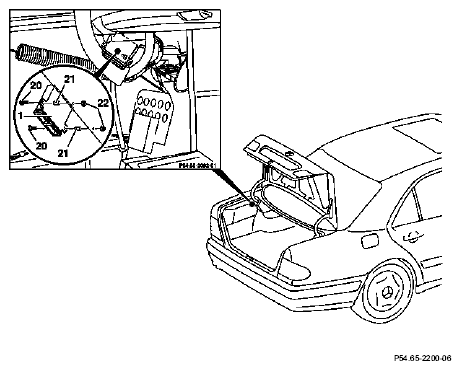

- Using a bolt and nut, position control module (1) at the free hole in the upper area of the side panel bracing in the left of the trunk and mark the second fixing hole for the control module on the front side of the bracing.
- Drill out marked drilling point to 6.5 mm dia.
Prime the drilled holes.
- Position the control module (1) behind the side panel bracing and screw on with 2 screws (20), distance sleeves (21) and nuts (22).
Models 210.0/6 as of 1.7.99 model year 99
