Remove/install electronic selector lever module (ESM) - AR27.60-P-0901P

TRANSMISSION 722.6 in MODEL 203, 209.3 /4

TRANSMISSION 722.9 in MODEL 203.052 /054 /056 /252 /254 /256 /752 /756, 209.354 /356 /372 /375 /376 /377 /454 /456 /472 /475 /476 /477

Illustrated on model 203

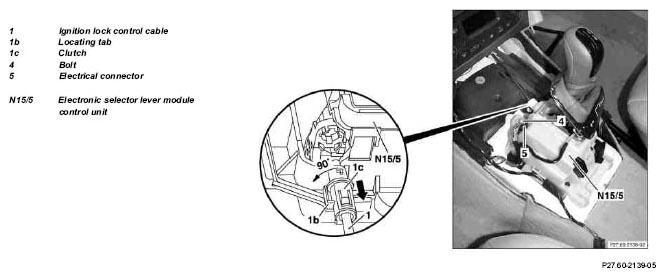

Fig 1: Identifying Electronic Selector Lever Module Remove/Install Components - Illustrated On Model 203

MODIFICATION NOTES

18.6.04

Disconnect/connect ground line on battery

	Remove/install
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Raise vehicle with lifting platform		AR00.60-P-1000P
2	Unhook shift rod from intermediate lever from below	Press off retainer using a suitable tool. Installation: Replace both locking devices of the shift rod, check bushings for damage and replace if necessary.
3	Lower vehicle with lifting platform
4	Remove selector lever handle with covering	Model 203, 209.3 with mechanism 722.6 up to 30.4.02	AR27.60-P-0905P
		Model 203, 209.3 with mechanism 722.6 from 1.5.02 Model 209.4 with transmission 722.6 Model 203, 209 with transmission 722.9	AR27.60-P-0905PA
5	Remove center console	Model 203	AR68.20-P-2000P
		Model 209	AR68.20-P-2000Q
6	Detach ignition switch control cable (1) at electronic selector lever module control unit (N15/5).	Compress the retaining lug (1b) and press the coupling (1c) against the spring force into the electronic selector lever module control unit (N15/5), twist 90° (to the right or left) and detach cable of ignition switch (1).
7	Unscrew bolt (4)		*BA27.60-P-1001-02A
8	Separate electrical connector (5)
9	Remove electronic selector lever module control unit (N15/5)
10	Install in the reverse order
11	Adjusting shift rod		AR27.60-P-0980P
12	Connect STAR DIAGNOSIS, read out and erase fault memory
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A

TIGHTENING TORQUES FOR FLOOR SHIFT

Number	Designation		Transmission 722.6	Transmission 722.9
BA27.60-P-1001-02A	Bolt, floor selector to body	Nm	6	6

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00
