Remove/install selector lever handle with covering - AR27.60-P-0905P

TRANSMISSION 722.6 in MODEL 203, 209.3 up to 30.4.02

Shown on model 203

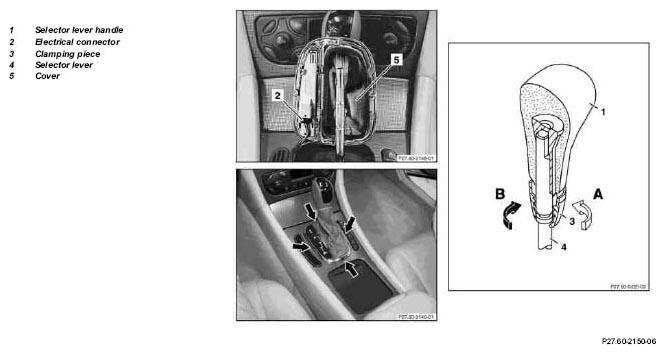

Fig 1: Identifying Selector Lever Handle With Covering Remove/Install Components - Transmission 722.6

MODIFICATION NOTES

1.3.04

Disconnect/connect/remove ground lead from battery

	Remove/Install
1	Unclip covering (5)	Four clips (arrows).
			Figure
2	Fold covering (5) up and over the selector lever handle (1)
3	Separate electrical connector (2)
4	Release clamping piece (3)	Turn clamping piece (3) in anti-clockwise direction (arrow A). Installation: Rotate clamping piece (3) clockwise (arrow B).
5	Pull selector lever handle (1) off selector lever (4)
6	Install in the reverse order

Fig 2: Identifying Longitudinal Wedge (115 589 03 59 00)
