Remove/install selector lever handle with covering - AR27.60-P-0905PA

TRANSMISSION 722.6 in MODEL 203, 209 as of 1.5.02

TRANSMISSION 722.9 in MODEL 203, 209

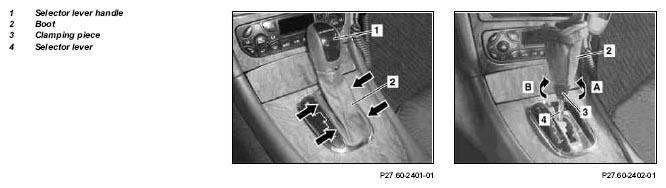

Fig 1: Identifying Selector Lever Handle With Covering Remove/Install Components - Transmission 722 (1 Of 3)

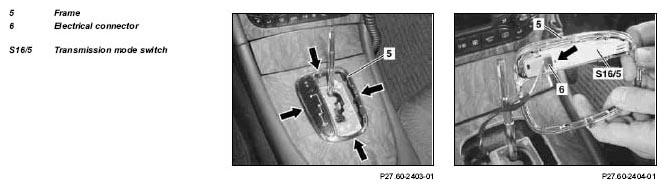

Fig 2: Identifying Selector Lever Handle With Covering Remove/Install Components - Transmission 722 (2 Of 3)

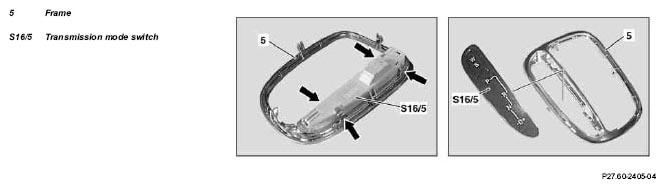

Fig 3: Identifying Selector Lever Handle With Covering Remove/Install Components - Transmission 722 (3 Of 3)

MODIFICATION NOTES

18.6.04

Disconnect/connect ground line on battery

	Remove/install
1	Pull boot (2) out of the frame (5)
2	Put the boot (2) upwards over the selector lever handle (1)
3	Unlock clamping piece (3)	Turn clamping piece (3) in anti-clockwise direction (arrow A). Installation: Rotate clamping piece (3) clockwise (arrow B).
4	Pull selector lever handle (1) off selector lever (4)
5	Detach frame (5)	Use long wedge as required.
			Figure
6	Release electrical connector (6) and disconnect from transmission mode switch (S16/5)
7	Unclip transmission mode switch (S16/5) from frame (5)
8	Install in the reverse order

Fig 4: Identifying Long Wedge (115 589 03 59 00)
