Adjusting shift rod - AR27.60-P-0980P

TRANSMISSION 722.6 in MODEL 203, 209

TRANSMISSION 722.9 in MODEL 203, 209

Illustrated on model 203

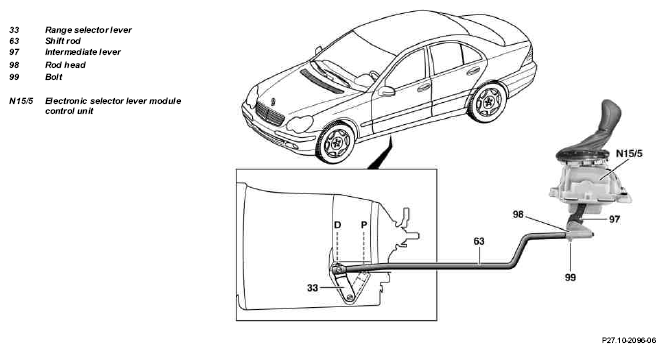

Fig 1: Identifying Shift Rod Adjustment Components - Illustrated On Model 203

G04732889

	Adjust
	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Move selector lever to position "D".	Have a helper hold selector lever in position "D" throughout the entire adjustment work.
2	Loosen bolt (99)
3	Move range selector lever (33) into position "D"
4	Tighten bolt (99)	The vehicle must be horizontal, otherwise correct adjustment is not guaranteed and shift problems may occur. Press against rod head (98) to tighten. Do not twist shift rod (63) or rod head (98).
			*BA27.60-P-1001-04A
5	Perform a function test

TORQUE SPECIFICATION

TIGHTENING TORQUES FOR SHIFT ROD

Number	Designation			Transmission 722.6	Transmission 722.9
BA27.60-P-1001-04A	Bolt in rod head	M8x10	Nm	12	12
