Remove/install glove compartment - AR68.10-P-1400P

MODEL 203

Shown on model 203.0

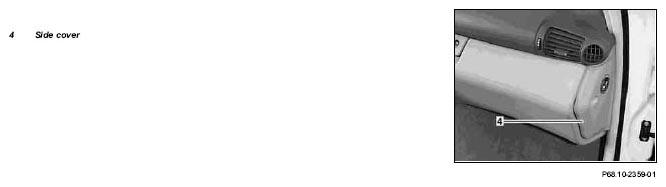

Fig 1: Identifying Glove Compartment Side Cover

Shown on model 203.0

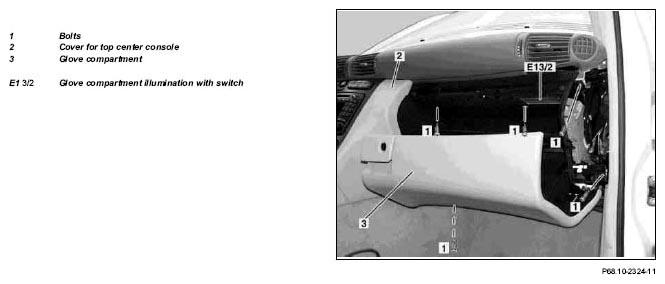

Fig 2: Identifying Glove Compartment, Cover For Top Center Console And Bolts

	Remove/Install
1	Remove center console		AR68.20-P-2000P
2	Remove cover on center console		AR68.20-P-2350P
3	Remove cover below instrument panel (right)		AR68.10-P-1520P
4	Remove side cover (4)
5	Remove bolts (1)
6	Disconnect glove compartment illumination with switch (E13/2)
7.1	Remove radio	with Audio 30 RDS MB radio code 750, with MB Audio 10 RDS MB radio code 753, with Audio 10 CD MB radio with VK/RDS code 756	AR82.60-P-7502P
		As of 24.4.04 with Audio 20 MB radio code 523	AR82.60-P-7502PA
7.2	Remove radio and APS navigation control panel	with CODE 353 Audio 30 APS	AR82.61-P-7412P
		As of 24.4.04 with Audio 50 APS MB radio Code 525	AR82.61-P-7412PA
7.3	Remove operating and display unit with control unit	Up to 23.4.04 with COMAND operating and display system code 352	AR82.85-P-7472P
		As of 24.4.04 with COMAND APS (with navigation) code 527, with HIGH Class Japan code 529, with COMAND APS USA (with navigation) code 530	AR82.85-P-7472PA
8.1	Remove stowage compartment in center console	with Audio 30 RDS MB radio code 750, with MB Audio 10 RDS MB radio code 753, with Audio 10 CD MB radio with VK/RDS code 756, with Audio 30 APS code 353
9	Unscrew bolts from top center console cover (2)
10	Remove glove compartment (3) with upper center console cover (2)
11	Install in the reverse order
