Retrofit i-Pod - AZ82.60-P-0014P

MODEL 203.0 /2 /7 with CODE (523) MB Audio 20 radio with CODE (525) MB Audio 50 APS radio with CODE (527) COMAND APS (with navigation) with CODE (530) COMAND APS USA (with navigation system) with CODE (535) Audio 20 CD radio, USA except CODE (498) Japan version Installation in the glove compartment, except retrofitted hands-free system FSE11, except retrofitted hands-free system FSE12

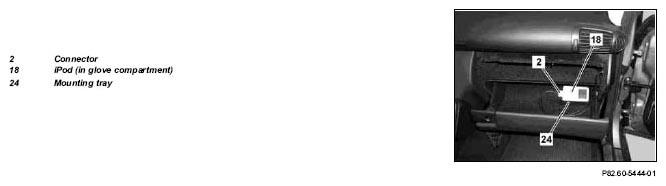

Fig 1: Identifying Connector, I-POD And Mounting Tray (1 Of 2)

If the top compartment is completely full, mounting tray (24) can also be installed in the lid of the glove compartment.

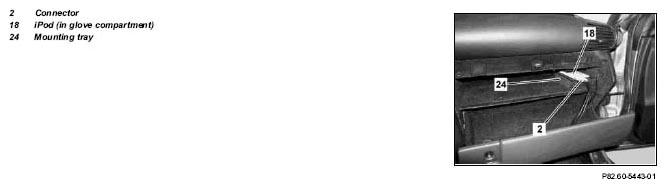

Fig 2: Identifying Connector, I-POD And Mounting Tray (2 Of 2)

For vehicles with (code 330) CD holder, access to the two upper CD trays of the CD holder (19) is no longer possible after the wiring harness for the i-Pod has been installed.

Shown on model 209.3

Fig 3: Identifying CD Holder

	Remove
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Risk of explosion  from electrolytic gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
1	Disconnect battery ground line
			AR54.10-P-0003P
	Notes on battery	All models	AH54.10-P-0001-01A
2.1	Remove radio
		As of 24.4.04 with CODE (523) MB Audio 20 radio.	AR82.60-P-7502PA
2.2	Remove radio and APS navigation control panel
		As of 24.4.04 with CODE (525) MB Audio 50 APS radio.	AR82.61-P-7412PA
2.3	Remove operating / display unit with control unit
		As of 24.4.04 with CODE (527) COMAND APS (with navigation), with CODE (530) COMAND APS USA (with navigation system).	AR82.85-P-7472PA
3	Remove cover below instrument panel (right)
			AR68.10-P-1520P
	Install
4	Retrofit i-Pod interface wiring harness		AZ82.60-P-0001-01Q
5	Retrofit i-Pod wiring harness		AZ82.60-P-0001-02Q
		Mounting wedge	Fig 5
6	Retrofit i-Pod interface		AZ82.60-P-0001-03Q
7	Connect i-Pod (18) to connector (2) in glove compartment
8	Adhere mounting tray (24) into glove compartment as shown in figure using MB universal adhesive
		MB universal glue	*BR00.45-Z-1003-02A
9	Install remaining parts onto vehicle	Steps 3 up to 1.
10	Perform version coding subsequently		AZ54.65-P-0001-08Q
		STAR DIAGNOSIS diagnosis system	*WH58.30-Z-1048-13A

Fig 4: Identifying Mounting Wedge (110 589 03 59 00)

Fig 5: Identifying Assembly Wedge (110 589 03 59 00)
