Retrofit i-Pod interface wiring harness - AZ82.60-P-0001-01Q

Installation shown with COMAND operating, display and control unit (A40/3)

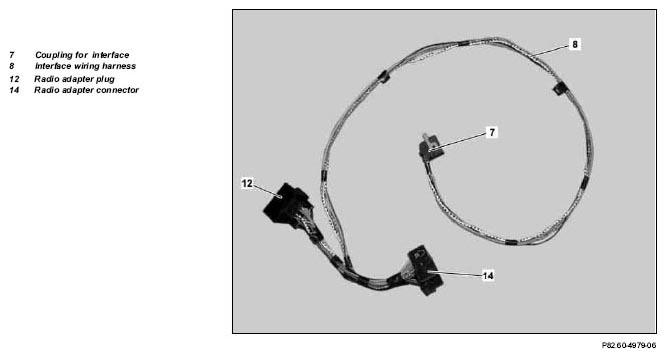

Fig 1: Identifying Interface Coupling, Radio Adapter Plug And Radio Adapter Connector - Installation Shown With COMAND Operating, Display And Control Unit (A40/3)

1. Remove MOST connector (22) from the standard radio connector and install in radio adapter connector (14) of the interface wiring harness.

   Risk of breakage!  Do not kink optical waveguide, route over sharp edges or bend in radii smaller than 25 mm. Tensile forces on inserts must not exceed 65 N. Do not squeeze fiber optical cable and do not compress with clamps or tie straps.

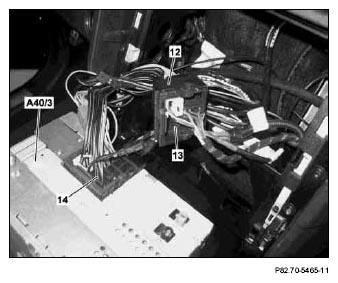

   Fig 2: Identifying Radio Adapter Connector And MOST Connector


2. Connect standard radio connector (13) to radio adapter plug (12) of the interface wiring harness.
3. Connect radio adapter connector (14) of the interface wiring harness to COMAND operating, display and control unit (A40/3).
   Fig 3: Identifying Standard Radio Connector, Radio Adapter Plug And Radio Adapter Connector


4. Route and secure interface wiring harness (8) with interface connector (7) from the radio recess in the front passenger footwell as shown in the figure.

   Interface connector (7) is connected to the i-Pod interface at a later time.

   Shown on model 209.3 with i-Pod interface installed

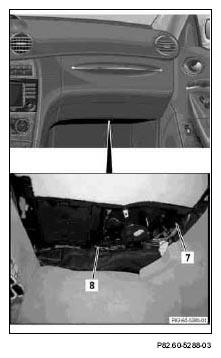

   Fig 4: Identifying Interface Connector And Interface Wiring Harness
