Retrofit hands-free system - AZ82.70-P-0005P
MODEL 203.0 up to 30.11.02 with CODE (273) Provision for D-network portable CTEL with CODE (354) CTEL antenna (GSM 900 and 1800 MHz) for Mercedes-Benz hands-free system FSE8
Illustrated with telephone flank
Installation is possible either with telephone flank (7) or telephone console accessory.
Installation method is to be clarified with the customer.

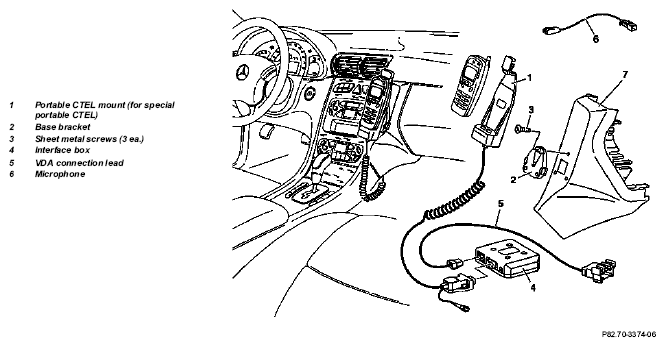

Fig 1: Identifying Portable CTEL Mount, Base Bracket, Interface Box, VDA Connection Lead And Microphone - Illustrated With Telephone Flank
| Remove | |||
| 1 | Connect no load current retention unit | *WH58.30-Z-1012-09A | |
| Risk of explosion caused by oxyhydrogen gas. Risk of poisoning and caustic burns caused by swallowing battery acid. Risk of injury caused by burns to skin and eyes from battery acid or when handling damaged leadacid batteries | No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Pour battery acid only into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 2 | Disconnect ground cable of battery | ||
| AR54.10-P-0003P | |||
| Notes on battery | All models | AH54.10-P-0001-01A | |
| 3 | Remove overhead control panel | ||
| 4 | Remove cover from center console | ||
| AR68.20-P-2350P | |||
| 5 | Remove radio | ||
| AR82.60-P-7502P | |||
| 6 | Remove glove compartment | ||
| AR68.10-P-1400P | |||
| Install | |||
| 7 | Retrofitting telephone console | AZ68.20-P-0001P | |
| 8 | Retrofit portable CTEL mount for hands-free system | When installing telephone flank | AZ82.70-P-0005-01P |
| When installing telephone console | AZ82.70-P-0005-01PP | ||
| 9 | Retrofit hands-free system wiring harness | AZ82.70-P-0005-03A | |
| 10 | Retrofit hands-free system wiring harness | AZ82.70-P-0005-02P | |
| 11 | Fit parts to vehicle, 6 to 1 | ||
| 12 | Carry out startup and function test | Check telephone for proper functioning according to operating instructions. |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
PARTS ORDERING NOTES
| Part no. | Designation | Quantity |
|---|---|---|
| B6 787 58 07 | Siemens S10D portable CTEL holder | As required |
| B6 787 58 06 | Siemens S25 portable CTEL holder | As required |
| B6 787 58 04 | Nokia 3110, 8110, 8148 portable CTEL holder | As required |
| B6 787 58 05 | Nokia 5110, 6110, 6130, 6150 portable CTEL mount | As required |
| B6 787 58 08 | Nokia 7110 portable CTEL mount | As required |
| B6 787 58 09 | Nokia 6210 portable CTEL mount | As required |
| B6 787 58 10 | Siemens S/C/M35 portable CTEL mount | As required |
| B6 682 86 16 | Antenna adapter (only if required) | 1 |
| B6 787 58 01 | Basic set VDA | 1 |
| Accessories | Telephone console (order according to customer requirements, vehicle model and equipment) | As required |
| Accessories | Telephone flank (order according to customer requirements, vehicle model and equipment) | As required |
