Retrofit cell phone - AN82.70-P-0002PP

MODEL 203.0 except CODE (855) TELE AID in combination with COMAND or radio in the Audio range

Illustrated on Model 203 sedan with radio

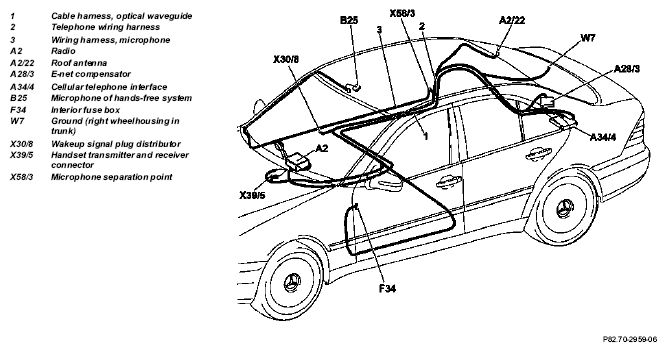

Fig 1: Cell Phone Components - Illustrated On Model 203 Sedan With Radio

	Notes on fiber optic	Models 129, 168, 170, 202, 203, 208, 210, 215, 220, 463.	AH82.70-P-0001-02A
	Removal
1	Disconnect ground cable of battery
			AR54.10-P-0003P
2	Remove roof control unit
3	Remove paneling at the lower left, lower and upper right of A-pillar
			AR68.30-P-4050P
4	Remove radio
5	Lift floor covering on driver and passenger side
	Remove/install floor covering (left)		AR68.20-P-2050P
	Remove/install front floor covering (right)		AR68.20-P-2070P
6	Open right wiring duct
7	Open front interior fuse box
8	Remove inside rearview mirror	Is replaced with a new inside rearview mirror with microphone.
			AR68.40-P-0001P
9.1	Remove center console	For installation in armrest.
			AR68.20-P-2000P
9.2	Remove cover from center console	For installation on center console.
			AR68.20-P-2350P
10	Remove glove compartment
11.1	Remove side wall on right of instrument panel	For installation on center console.
12	Remove CD player with changer	Only for vehicles with CD player without sound system.
13	Remove rear seat and rear seat backrest
14	Remove paneling in trunk on right
15	Release roof paneling at front and rear
			AR68.30-P-4300P
16	Remove cover below instrument panel on left
			AR68.10-P-1500P
	Install
17	Retrofit telephone control module		AN82.70-P-0002-04P
18	Retrofit fiber optic wiring harness	Vehicles without CD changer and without sound system.	AN82.70-P-0002-01AP
		Vehicles with CD changer.	AN82.70-P-0002-01PA
		Vehicles with sound system.	AN82.70-P-0002-01APP
19	Cover optical waveguide	Do not kink or stretch D2B fiber optic.
		Install covers on fiber-optic coupling and equipment connector.
			AR82.95-P-0005-01A
20	Retrofit telephone cable harness		AN82.70-P-0002-03P
21	Install telephone antenna
			AR82.70-P-8951P
22	Retrofit bracket for cell phone (telephone)	Depending on the installation location of the cell phone, there are different parts to be ordered. Please discuss the installation location with the customer.
		For installing cell phone in armrest.	AN82.70-P-0002-05P
		For installing cell phone on center console.	AN82.70-P-0002-05PP
23	Fit remaining parts to vehicle 16-1
24	Perform startup and function check	Perform nominal/actual configuration with Star diagnosis Check telephone for proper functioning according to operating instructions.
