Retrofitting mount for portable (cellular telephone) - AN82.70-P-0002-05P

Model 203.0 bracket for cell phone in armrest

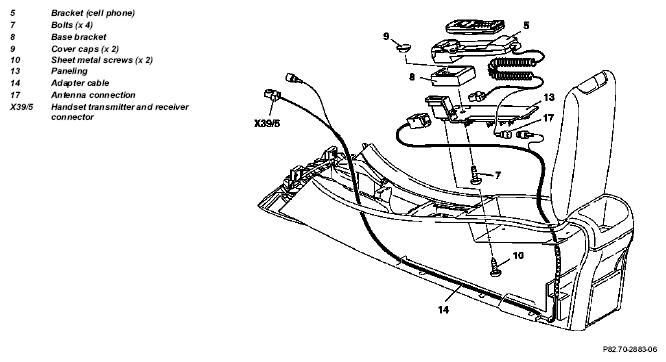

Fig 1: Identifying Base Bracket, Paneling, Adapter Cable, Handset Transmitter And Receiver Connector

When installing the bracket (cell phone, 5), ensure that a bracket with slanted connection line (arrow) is installed.

Fig 2: Identifying Cell Phone Bracket

1. Insert connection line from bracket (cell phone, 5) into paneling (13) as shown in figure.
2. Connect antenna line (17) to adapter cable (14) and clip into paneling (13) as shown in figure.
3. Insert lines into the catch slots (arrows) provided under the paneling (13).
   Fig 3: Identifying Paneling, Antenna Line And Adapter Cable


4. Bolt base bracket (8) onto paneling (13) with bolts.
5. Insert bracket (cell phone, 5) into base bracket (8).
   Fig 4: Identifying Base Bracket And Paneling


6. Insert paneling with bracket (cell phone) into telephone shell and secure from below with bolts (4).
   Fig 5: Identifying Bracket And Adapter Cable


7. Guide adapter cable (14) with the fabric hose through the left feed-through of the armrest and secure with locking flap (15).
   Fig 6: Identifying Adapter Cable And Locking Flap


8. Clip adapter cable (14) into the retaining clip (arrow) under the armrest.
   Fig 7: Identifying Adapter Cable And Retaining Clip
