Retrofitting mount for portable (cellular telephone) - AN82.70-P-0002-05PP

Model 203.0 bracket for cell phone on the center console

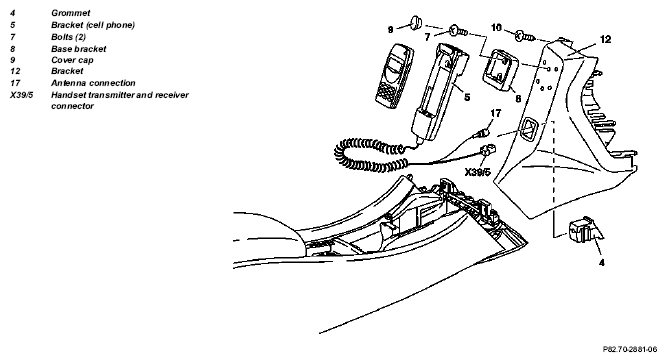

Fig 1: Identifying Base Bracket, Grommet, Antenna Connection, Handset Transmitter And Receiver Connector

1. Bolt base bracket (8) with sheet metal screws (7) onto bracket (12) at pre-punched fastening holes.
2. Plug fastening holes with cover caps (9).
   Fig 2: Identifying Base Bracket, Sheet Metal Screws And Cover Cap


3. Guide connection cables from the bracket (cell phone, 5) through the feed-through hole (6) in the bracket (12).
4. Fold open grommet (4) and place from the fastening eye (11) to the connection cable as shown in figure.
5. Insert grommet (4) with the connection cable in the feed-through (6) as shown in figure (arrow).

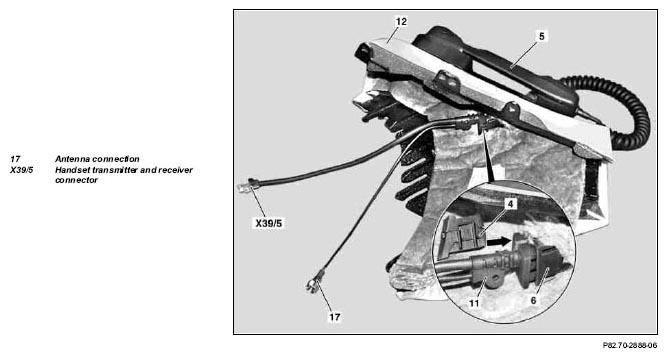

   Fig 3: Identifying Grommet, Bracket, Fastening Eye, Handset Transmitter And Receiver Connector


6. Connect handset transmitter/receiver connector (X39/5) and antenna connection (17) to telephone wiring harness.

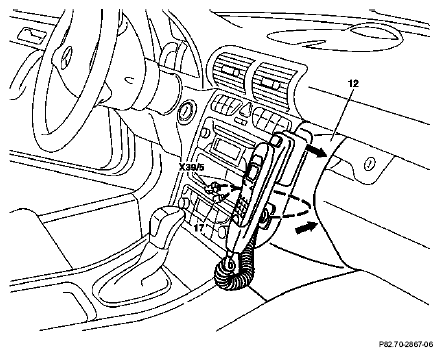

7. Insert bracket (12) into the sidewall of the instrument panel (arrow).

   Bracket (12) will be bolted on to the center console later with the bolts.

   Fig 4: Identifying Handset Transmitter/Receiver Connector, Antenna Connection And Telephone Wiring Harness
