Remove/install poly-V-belt tensioning device - AR13.25-P-3200QB

ENGINE 272.920 in MODELS 203.052 /252 /752

ENGINE 272.940 in MODELS 203.054 /254, 209.354 /454

ENGINE 272.960 in MODELS 203.056 /256 /756, 209.356 /456

ENGINE 272.970 in MODELS 203.087 /287

ENGINE 272.941 in MODELS 203.092 /292

ENGINE in MODEL 273 209

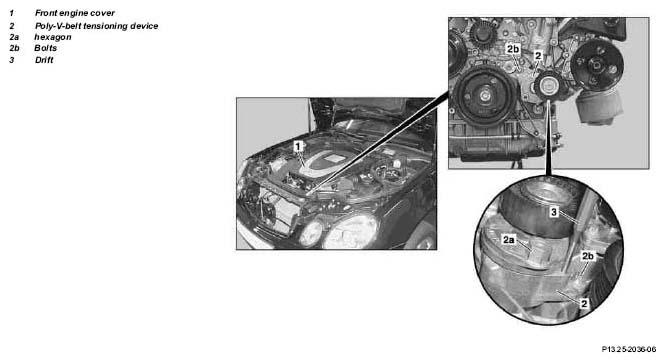

Fig 1: Identifying Poly-V-Belt Tensioning Device Remove/Install Components - Engine 272.920/940/941

	Remove/install
	Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Open engine hood and raise to vertical position	Model 203	AR88.40-P-1000P
		Model 209	AR88.40-P-1000Q
2	Remove front engine cover (1)	Pull out front engine cover (1) from mounts.
3	Remove fan shroud	Engine 273	AR20.40-P-5000QB
4	Remove poly-V-belt		AR13.22-P-1202QB
5	Lock poly-V-belt tensioning device (2)	Swivel poly-V-belt tensioning device (2) at hexagon (2a) in an anti-clockwise direction and lock in place using drift (3).
6	Remove bolts (2b) and poly-V-belt tensioning device (2)		*BA13.25-P-1001-01P
7	Unclamp poly-V-belt tensioning device (2)	-->Only when replacing the poly-V-belt tensioning device (2). Clamp poly-V-belt tensioning device (2) in a vise, swivel at hexagon (2a) in an anticlockwise direction, pull out drift (3) and slacken poly-V-belt tensioning device (2). Installation:  The poly-V-belt tensioning device (2) can only be installed when locked.
8	Install in the reverse order
