Remove/install poly V-belt - AR13.22-P-1202QB
ENGINE 272.920 in MODELS 203.052 /252 /752
ENGINE 272.940 in MODELS 203.054 /254, 209.354 /454
ENGINE 272.960 in MODELS 203.056 /256 /756, 209.356 /456
ENGINE 272.970 in MODELS 203.087 /287
ENGINE 272.941 in MODELS 203.092 /292
ENGINE 273 in MODEL 209
| Removing | |||
| Risk of injury caused by fingers being pinched or crushed when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof. | Keep body parts and limbs well clear of moving parts. | AS00.00-Z-0011-01A | |
| 1 | Open engine hood and raise to vertical position | Model 203 | AR88.40-P-1000P |
| Model 209 | AR88.40-P-1000Q | ||

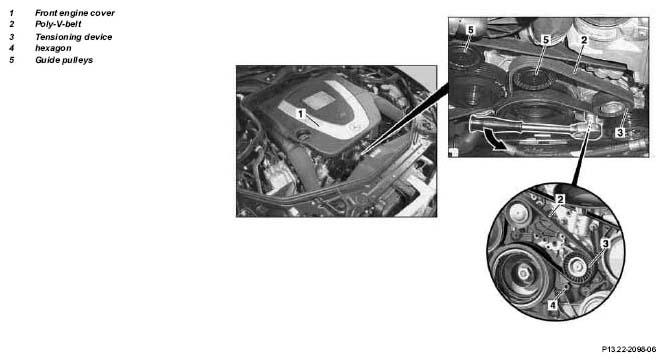

| 2 | Remove front engine cover (1) | ||
| 3 | Loosen poly-V-belt (2) and remove | ||
| Checking | |||
| 4 | Inspect belt pulley sections, tensioning device (3) and guide pulleys (5) | Check for wear, damage or soiling and replace if necessary: ↓ | |
| Remove/install poly V-belt tensioning device | AR13.25-P-3200QB | ||
| Remove/install poly-V-belt guide pulley | AR13.21-P-3350QB | ||
| 5 | Check poly-V belt (2) and replace if required | ||
| Check poly-V-belt in visible area for wear | Model 203, 209 with engine 272 | AP13.22-P-1352PIT | |
| Model 209 with engine 273 | AP13.22-P-1352RX | ||
| Install | |||
| 6 | Mount poly-V-belt (2) and tension it. | ||
| Routing diagram of poly V-belt |
AR13.22-P-3902-02VA | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the running engine | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 7 | Perform engine test run and check for correct seating of the poly-V-belt (2) | ||
| 8 | Install front engine cover (1) | ||
| 9 | Close engine hood | Model 203 | AR88.40-P-1000P |
| Model 209 | AR88.40-P-1000Q |
