Removing and installing shock absorber with front spring - AR32.20-P-0225D

MODEL 210.08/28

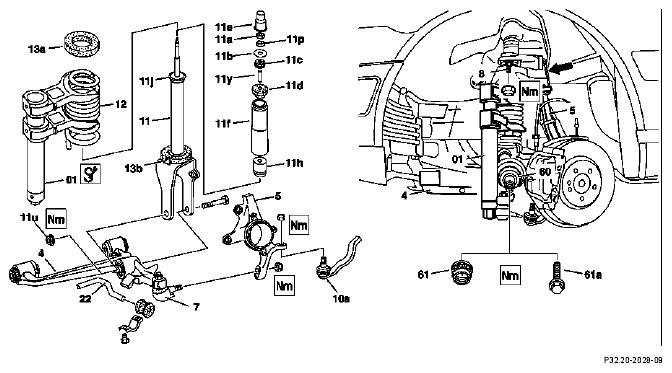

Fig 1: Identifying Shock Absorber With Front Spring Components
G04624699Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Modification notes

26.7.99 Value in BA33.30-P-1001-02A in model 210.08/28 changed from 220 Nm to 280 Nm   *BA33.30-P-1001-02A
23.7.99 Modified tightening torque for twelve-point collared nut, front axle shaft to front axle shaft flange See step 2.1 *BA33.30-P-1001-02A
23.7.99 Bolted connection, front axle shaft to front axle shaft flange, modified New step 3.1 included: ↓ BT33.30-P-0003-01D
    Detaching and attaching hexagon collared bolt on front axle shaft AR33.30-P-0620-05D
23.7.99 Bolted connection, shock absorber to lower wishbone, modified   BT32.20-P-0002-01D
    New tightening torque included, see step 19 *BA32.25-P-1003-01B
REMOVINGINSTALLING Removing, installing
NOTESInstallation  Replace self-locking nuts and bolts
1 Remove front wheel
REFER TO MAINTENANCE     AP40.10-P-4050Z
2.1 Detach twelve-point collared nut (61) on front axle shaft First version AR33.30-P-0620-01A
    TORQUE SPECIFICATION *BA33.30-P-1001-02A
REFER TO SHOP-MADE TOOLS Caulker for securing twelve-point collared nut   WF58.50-P-3330-01A
REFER TO COMPONENT MODIFICATIONS Bolted connection, front axle shaft to front axle shaft flange, modified   BT33.30-P-0003-01D
3.1 Detach hexagon collared bolt (61a) on front axle shaft Second version AR33.30-P-0620-05D
    TORQUE SPECIFICATION *BA33.30-P-1004-02A
4 Detach brake hose bracket from shock absorber shackle
5 Remove cables for rpm sensor and brake pad wear sensor from guides IMPORTANTInstallation:  Ensure cable is correctly routed.
6 Press tie rod joint (10a) out of steering knuckle (5)   AR46.40-P-0200-02C
    SPECIAL TOOL Thrust piece Fig 3
    SPECIAL TOOL Puller Fig 2
    TORQUE SPECIFICATION *BA46.40-P-1002-01A
7 Press supporting joint (7) out of steering knuckle (5)   AR33.20-P-0440-01D
    SPECIAL TOOL Thrust piece Fig 3
    SPECIAL TOOL Puller Fig 4
    TORQUE SPECIFICATION *BA33.20-P-1004-01A
8 Pull steering knuckle (5) outwards and slide front axle shaft (60) out of front axle shaft flange NOTESCover the front axle carrier in the area of the front axle shaft so that the rubber boot is not damaged.
9 Press follower joint (8) out of steering knuckle (5) NOTESSupport steering knuckle and secure it to prevent it falling.  AR33.20-P-0500-01D
    SPECIAL TOOL Thrust piece M 10x1.5 Fig 5
    SPECIAL TOOL Puller Fig 6
    TORQUE SPECIFICATION *BA33.20-P-1002-01A
10 Hook steering knuckle (5) onto upper wishbone using shop-made hook (arrow)
REFER TO SHOP-MADE TOOLS Hook for suspending steering knuckle   WF58.50-P-0400-01A
11 Remove lower engine compartment covering   AR61.20-P-1105AB
12.1 Press out right front axle shaft (60) NOTES Do not damage the rubber boot and rpm sensor rotor. AR33.30-P-0620-02A
13.1 Drive out left front axle shaft (60) NOTES Do not damage the plastic guard ring, rubber boot and rpm sensor rotor. AR33.30-P-0620-03A
14 Remove torsion bar (22) on front axle   AR32.20-P-0300E
DANGER Risk of injury  with trapped or crushed fingers  when working on springs or spring-loaded components Use only approved tensioning devices; additionally shield off hazardous area if necessary.
Inspect special tools for damage and proper operation (visual inspection).
Wear protective gloves.
AS00.00-Z-0001-01A
15 Clamp front spring (12) IMPORTANT Mark front spring relative to spring compressor (01). AR32.20-P-0200-05D
    SPECIAL TOOL Spring compressor Figure
    SPECIAL TOOL Clamping plates Figure
16 Remove cover cap (11e) from upper shock absorber mounting
17 Detach upper shock absorber mounting from front end   AR32.25-P-0105-02D
    SPECIAL TOOL Socket wrench, 17mm Fig 9
    SPECIAL TOOL Socket wrench, 16 mm Fig 10
    TORQUE SPECIFICATION Nut (11p), shock absorber to front end. *BA32.25-P-1001-01B
    TORQUE SPECIFICATION Lock nut (11a), shock absorber to front end. *BA32.25-P-1002-01B
18 Remove plate (11b) and rubber mount (11c)
19 Detach shock absorber mounting from lower wishbone (4) TORQUE SPECIFICATION Nut (11u), shock absorber to wishbone. *BA32.25-P-1003-01B
REFER TO COMPONENT MODIFICATIONS Bolted connection, shock absorber to lower wishbone, modified   BT32.20-P-0002-01D
20 Remove shock absorber with shackle (11) and front spring (12)
21 Remove front axle shaft (60)
22 Remove fastening parts (11y, 11d, 11f, 11h) INSPECT Check fastening parts and replace if necessary.
23 Remove front spring (12) from shock absorber with shackle IMPORTANTInstallation:  Ensure that the rubber mounts (13a, 13b) are installed in the correct position. Left lower rubber mount (13b): Arrow on rubber mount points towards the front in the direction of travel.
Right lower rubber mount (13b): Arrow on rubber mount points towards the rear opposite the direction of travel.
Fasten upper rubber mount (13a) to front spring with adhesive tape (to prevent it slipping).

24.1 Release front spring (12) Only if the front spring is being replaced.
After replacing the front spring or rubber mount: ↓
AR32.20-P-0200-05D
    Check and correct headlamp adjustment AP82.10-P-8260A
25 Check shock absorber (11) and replace if necessary   AR32.25-P-0121A
26.1 Remove cap (11j) from shock absorber If necessary, in order to remove the rubber mount (13b). AR32.25-P-0105-03D
27 Check rubber boots on front axle shaft If necessary, after checking: ↓
    Replace rubber boots on front axle shaft AR33.30-P-0660A
28 Install in the reverse order
TORQUE SPECIFICATION Front axle shock absorber

Number Designation Model 210.08/28
BA32.25-P-1001-01B Nut, shock absorber to front end Nm 18
BA32.25-P-1002-01B Lock nut, shock absorber to front end Nm 30
BA32.25-P-1003-01B Self-locking nut, shock absorber to wishbone   Nm -
yellow Nm 185
silver/blue Nm 170
TORQUE SPECIFICATION Wheel location, hub

Number Designation Model 210.08/28
BA33.20-P-1002-01A Self-locking nut, upper wishbone follower joint to steering knuckle Initially Nm 45
Inspection Nm -
BA33.20-P-1004-01A Self-locking nut, supporting joint to steering knuckle Nm 105
TORQUE SPECIFICATION Front axle shaft

Number Designation Model 210.08/28
BA33.30-P-1001-02A Collared nut, front axle shaft to front axle shaft flange Nm 280
BA33.30-P-1004-02A Collared bolt, front axle shaft to front axle shaft flange Nm 270
TORQUE SPECIFICATION Tie rod

Number Designation Model 210
BA46.40-P-1002-01A Self-locking nut, tie rod to steering knuckle yellow Nm 60
silver or blue Nm 70
Fig 2: Identifying Puller (202 589 02 33 00)
G04624700Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: Identifying Thrust Piece (140 589 00 63 00)
G04624701Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 4: Identifying Puller (140 589 09 33 00)
G04624702Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 5: Identifying Thrust Piece M 10X1.5 (210 589 04 63 00)
G04624703Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 6: Identifying Puller (124 589 03 33 00)
G04624704Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 7: Identifying Spring Compressor (210 589 00 31 00)
G04624705Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 8: Identifying Clamping Plates (210 589 10 63 00)
G04624706Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 9: Identifying Socket Wrench (202 589 00 09 00)
G04624707Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 10: Identifying Wrench Socket (210 589 00 09 00)
G04624708Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
